Поз.
Артикул
Описание

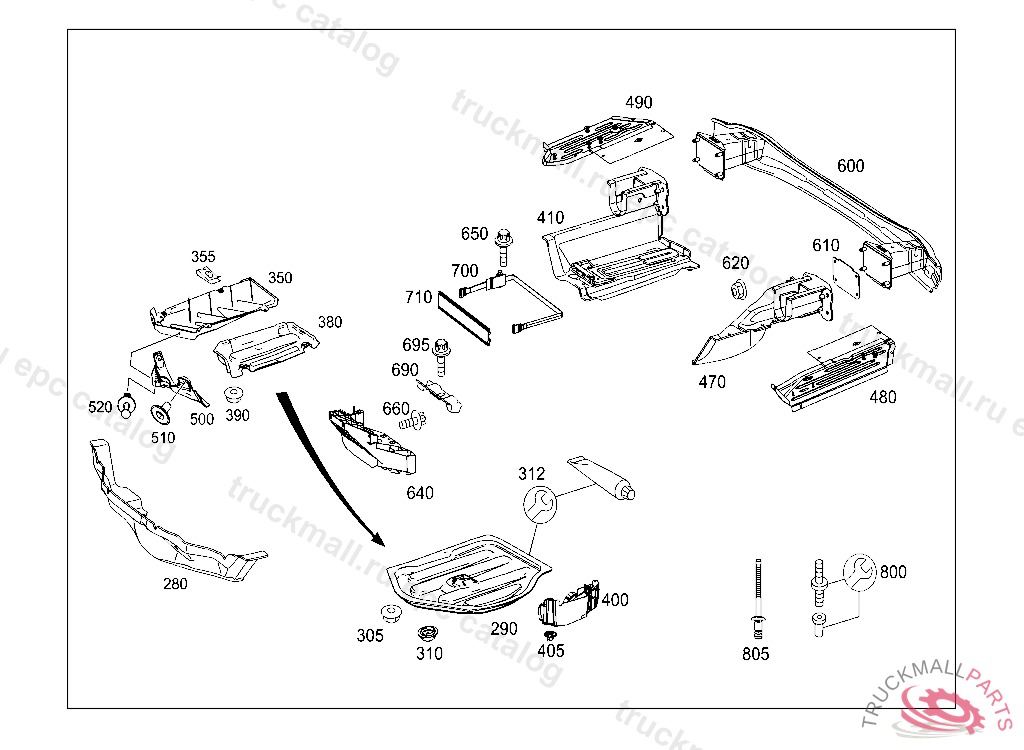

280
END PIECE FRONT SPARE TIRE WELL
290
SPARE WHEEL WELL
310
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
312
REPAIR KIT
350
COVER REAR FLOOR ASSEMBLY RIGHT
355
LOCK NUT. LOCK
380
COVER, REAR-END FLOOR BATTERY FLOOR
390
PLASTIC NUT. NUT
400
COVER COMPRESSOR
405
PLASTIC NUT. NUT
410
END PIECE RIGHT
470
END PIECE LEFT
480
BOTTOM REAR LEFT
490
BOTTOM REAR RIGHT
500
COVER RIGHT FRONT SPARE TIRE WELL
510
HEXAGON NUT W COLLAR BRACKET MOUNTING
520
RIVET COVERING TO SIDE MEMBER
600
REAR CROSS MEMBER REAR
600
CROSS MEMBER REAR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 31799720100922 L 01205420100930 V 00106220100930, Replaced By: A2126102014
610
SURFACE GASKET BETWEEN CROSSMEMBER AND REAR END CENTER ASSY.
620
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
805
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
