Поз.
Артикул
Описание

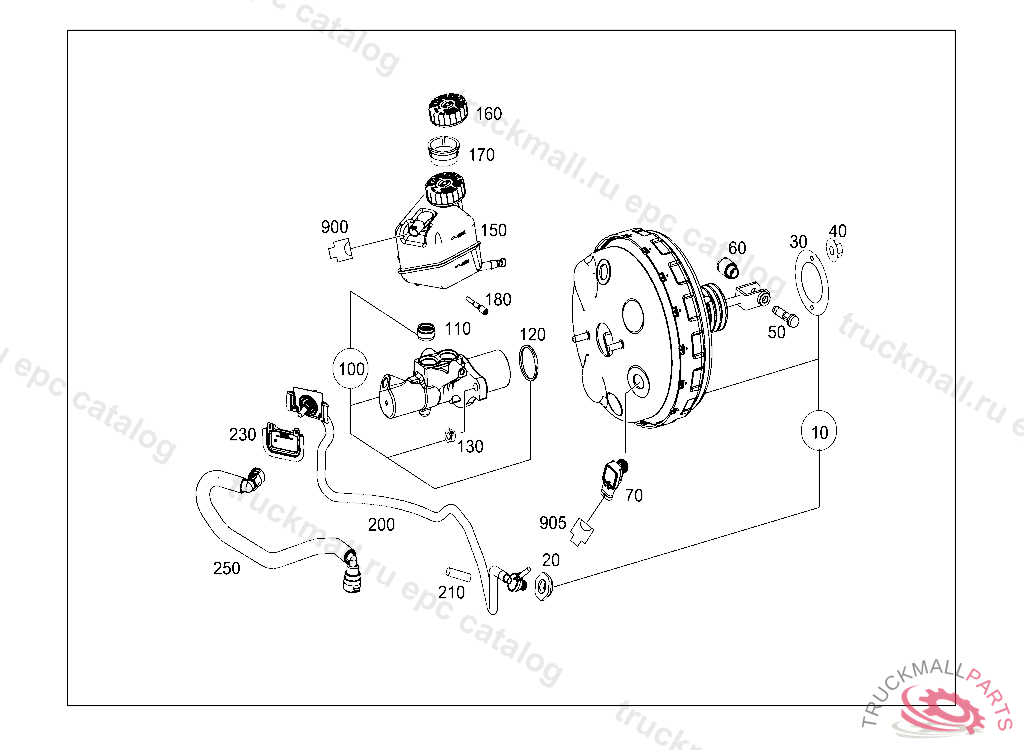

10
TS BRAKE BOOSTER PARTS KIT
20
SEALING PLUGS VACUUM LINE AT BRAKE BOOSTER
30
GASKET BRAKE BOOSTER TO BEARING BRACKET
40
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
50
PIN BRAKE UNIT TO PEDAL ASSEMBLY
70
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
100
TS MASTER BRAKE CYLINDER PARTS KIT
100
MASTER BRAKE CYLINDER PARTS KIT
110
STOP PLUG EXPANSION RESERVOIR TO MASTER CYLINDER
120
SEAL RING
130
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
150
DASHPOT
160
COVER
170
STRAINER
180
BOLT EXPANSION RESERVOIR TO MASTER CYLINDER
200
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT
200
VACUUM LINE BRAKE BOOSTER TO PARTITION POINT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2124304429
210
LOCKING CAP
230
CLOSING GROMMET
250
VACUUM LINE FROM SEPARATION POINT TO INTAKE MANIFOLD
250
LINE FROM SEPARATION POINT TO INTAKE MANIFOLD, A 11948020091017 L 00307920091031 V 00040920091031
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
905
CLUTCH VACUUM SENSOR IN BRAKE UNIT 3-PIN MLK1.2,B64/1
