Поз.
Артикул
Описание

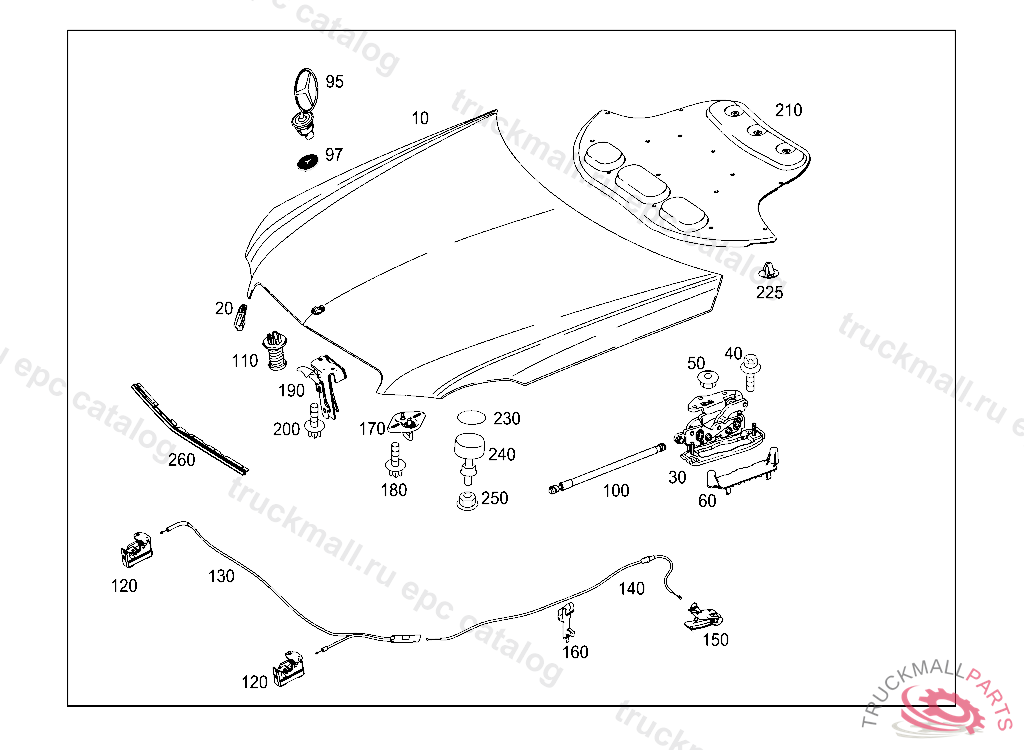

10
HOOD
20
BAFFLE AT ENGINE HOOD FRONT LEFT AND RIGHT
30
HINGE RIGHT
30
HINGE LEFT
40
BOLT W FLANGE FASTENING SEAT FRAME AT RIGHT, FRONT M8X25
40
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
50
NUT EXPANSION TANK TO WHEELHOUSE
60
COVER HINGE, LEFT AND RIGHT
95
MERCEDES STAR
97
COMPANY SIGN FOR ENGINE HOOD
100
GAS PRESSURE STRUT RIGHT
100
GAS-OPERATED SPRING LEFT, INTERSTOP
110
SPRING ELEMENT FOR ENGINE HOOD
130
HOOD CABLE FRONT
140
ENGINE HOOD RELEASE CABLE REAR
150
RELEASE HANDLE ENGINE HOOD RELEASE CABLE
160
LINE HOLDER FOR ENGINE HOOD CABLE TO LONGITUDINALMEMBER
170
ENGINE HOOD CATCH UPPER PART
180
SCREW LEVER TO ENGINE CONTROL SHAFT
190
SAFETY HOOK
200
SCREW LEVER TO ENGINE CONTROL SHAFT
210
SOUNDPROOFING ENGINE HOOD,CENTER
225
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
230
INTERMEDIATE LAYER REAR LID STOP
230
PLUG ENGINE HOOD STOP
240
STOP BUFFER ENGINE HOOD REST TO STIFFENING
250
NUT , Replaced By: N913023006001
