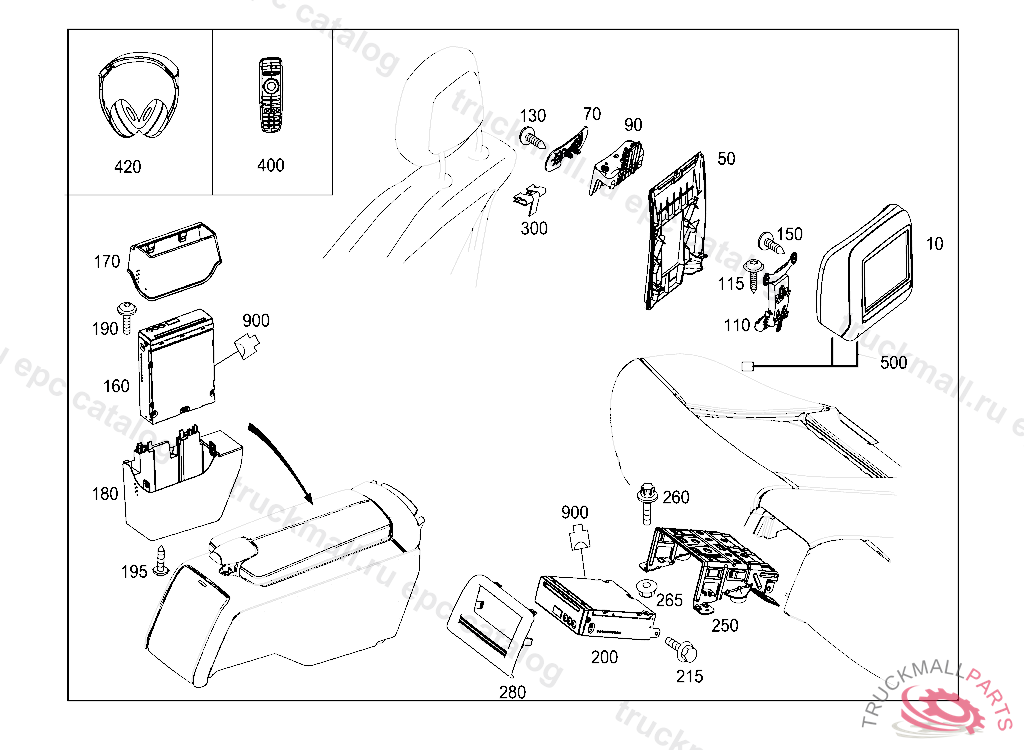

Поз.
Артикул
Описание
10
CONTROL UNIT RIGHT MONITOR
50
COVER RIGHT MONITOR
70
REINFORCEMENT MONITOR AT RIGHT SEAT
90
BRACKET MONITOR AT RIGHT SEAT
110
BRACKET MONITOR AT RIGHT SEAT
115
BOLT BACKREST SHELL TO BACKREST FRAME 5X18
130
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
150
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
150
HEXALOBULAR BOLT DRIER TO CONDENSER M5X10
170
COVER TOP, 9051QFT212A2420 BLACK
180
COVER BOTTOM, 9051QFT212A2420 BLACK
190
BOLT. SCREW
195
SHEET METAL SCREW BRACKET TO SUPPORT
200
CONTROL OPERATING UNIT
215
HEXAGON HEAD BOLT LINE MOUNTING M6X10
215
SCREW SOCKET MOUNTING
250
BRACKET OPERATING UNIT
260
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
265
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
280
COVER OPERATING UNIT, 7J22QFT212A2422 SILVER
300
CLIP RIGHT SEAT
400
REMOTE CONTROL , A 02295520080930809 A 02654120100930801
400
REMOTE CONTROL , A 02430720090731800
420
HEADPHONE
420
HEADPHONE
420
HEADPHONE
900
CLUTCH REAR ENTERTAINMENT UNIT CONTROL UNIT 10-PIN MQS,N66/4*3
900
HOUSING. PLUG
900
CLUTCH NAVIGATION RETROFIT SEPARATION POINT 10-PIN MQS,X1/55
