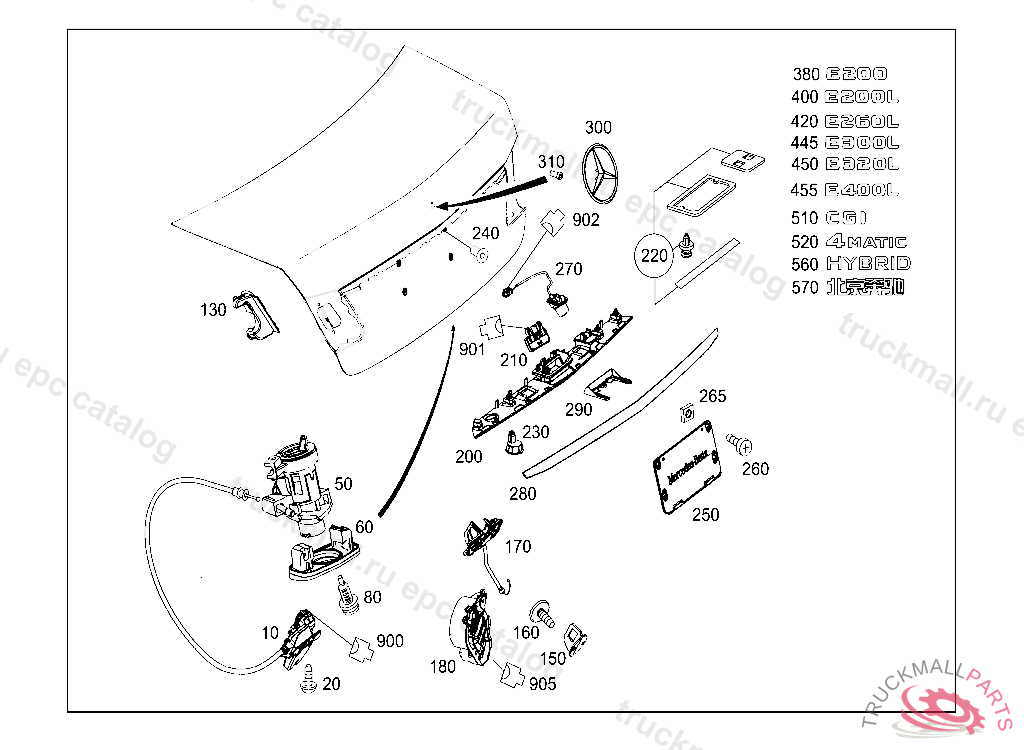

Поз.
Артикул
Описание
10
LOCK
20
FILLISTER HEAD SCREW BRACKET MOUNTING M6X18,8
50
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
60
BRACKET MECHANICAL FOR EMERGENCY ACTUATION
80
TUMBLER , THEFT-RELEVANT PART
130
COVER AT LEFT INNER TRUNK LID
150
STRIKER
160
FILLISTER HEAD SCREW BRACKET MOUNTING M6X18,8
170
CATCH
180
DRIVE POWER CLOSING SYSTEM
200
HANDLE MOLDING
200
HANDLE MOLDING , L 09243920121123
200
HANDLE MOLDING , A 20120806 L 02965920120731 V 00224520120731
210
PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
220
RS HANDLE MOLDING MOUNTING MATERIAL
230
BUZZER IN REAR-END DOOR
240
NUT LICENSE-PLATE MOUNTING
250
FASTENING PLATE AT REAR PANEL DOOR
260
HEXALOBULAR BOLT PLATE TO REAR LID M5X16
265
NUT ATTACHMENT PLATE
270
CONSOLE CAMERA WITH BRACKET, A 07056320120910803
270
CAMERA REVERSING CAMERA IN HANDLE STRIP
270
CONSOLE CAMERA WITH BRACKET
280
MOULDING MOULDING TYPE HANDLE, L 09243920121120
290
MOUNTING BRACKET MOULDING TYPE HANDLE
300
MERCEDES STAR
310
GROMMET MERCEDES STAR TO REAR LID
450
MODEL PLATE ON REAR LID E320L
455
MODEL PLATE ON REAR LID E400L
560
TYPE DESIGNATION ON REAR LID HYBRID
570
MODEL PLATE ON REAR LID MERCEDES-BENZ, L 10994920100409
900
CLUTCH SEPARATION POINT, TEMPERATURE SENSOR 4-PIN MQS,X15/12
901
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
902
CLUTCH RIGHT REAR SEAT BACKREST LOCK SWITCH 3-PIN MQS,S54/8
902
CLUTCH SEPARATION POINT, TEMPERATURE SENSOR 4-PIN MQS,X15/12
905
PLUG HOUSING POWER CLOSING SYSTEM 2-PIN JPT,M14/31
