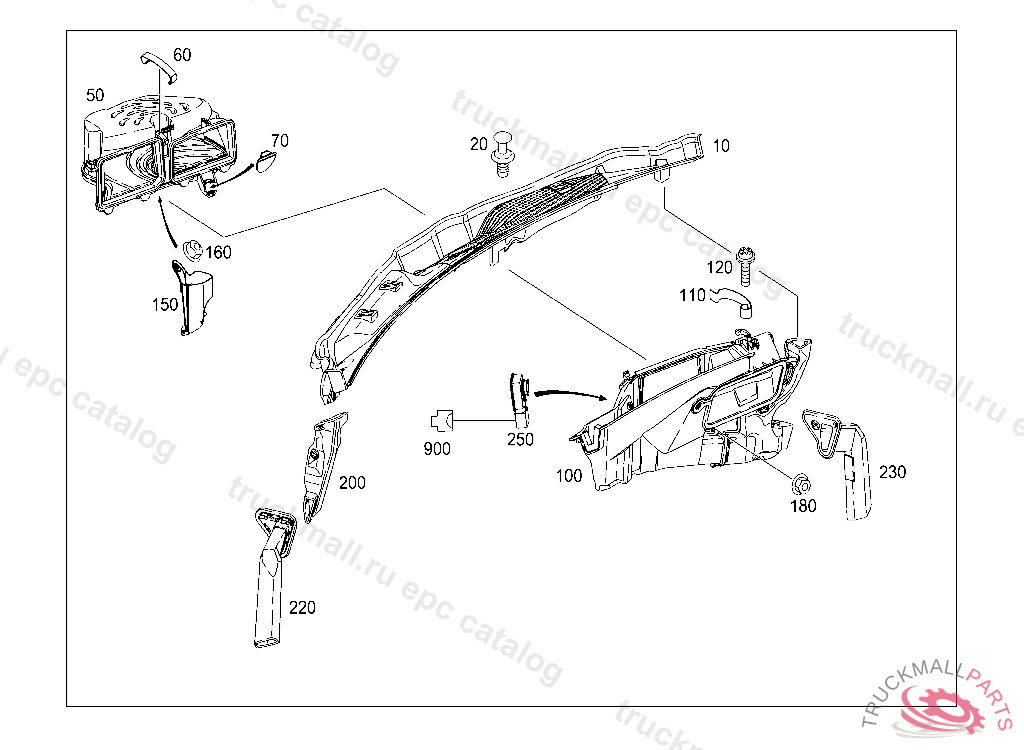

E 320 L - 212.162 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
10
COVER AIR INTAKE AIR INLET
10
COVER AIR INLET
20
RIVET ON CAB FLOOR UNDER STEP
50
HOUSING AIR INTAKE
60
CLIP
70
VALVE AT HOUSING
100
AIR DUCT AT FIRE WALL
110
CLIP
120
BOLT CONTACT PLATE FASTENER M5X10
150
FITTING FRONT
180
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
200
FITTING LEFT
220
FITTING LEFT BOTTOM
230
FITTING RIGHT BOTTOM
250
SENSOR GASEOUS POLLUTANT SENSOR
900
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
