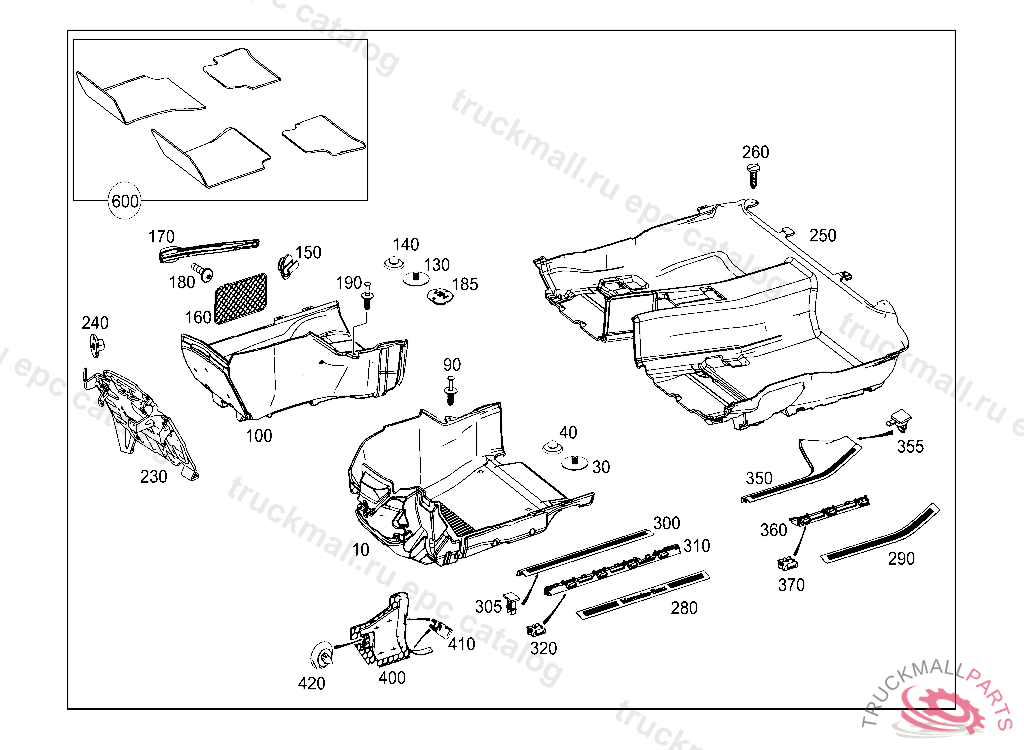

Поз.
Артикул
Описание
10
FRONT FLOOR COVERING FRONT LEFT
30
BRACKETBELAG FAHRERBODEN
40
CAP FRONT FLOORING, SPECIFY ES 2: 9051 WHEN ORDERING.
90
RIVET COVERING TO SIDE MEMBER
100
FRONT FLOOR COVERING FRONT RIGHT
130
BRACKETBELAG FAHRERBODEN
140
CAP FRONT FLOORING, SPECIFY ES 2: 9051 WHEN ORDERING.
150
BRACKET FOR LUGGAGE NET, 9051QFT246A0370 BLACK
160
LUGGAGE NET TUNNEL COVERING, 9C44QFT169A3011 ANTHRACITE
185
ASSEMBLY FRAME REAR
190
RIVET COVERING TO SIDE MEMBER
230
SUPPORT CO-DRIVER'S LEGROOM
240
HEX NUT GUIDE AT REAR FENDER
260
STOP PLUG REAR TOP
280
RAIL FRONT OUTER, LEFT AND RIGHT, 7M39QFT218A0302 BACK-INJECTED STAINLESS STEEL
290
COVER RAIL LEFT OUTSIDE REAR, L 05815420111226 7M39QFT212A0302 BACK-INJECTED STAINLESS STEEL
290
COVER RAIL RIGHT OUTSIDE REAR, L 05815420111226 7M39QFT212A0302 BACK-INJECTED STAINLESS STEEL
300
RAIL FRONT RIGHT INSIDE
300
RAIL FRONT LEFT INSIDE
305
CLIP SCHUTZLEISTE RIGHT
310
STAY FRONT LEFT INSIDE
310
STAY INTERIOR, FRONT RIGHT
320
SPRING CLAMP LEFT AND RIGHT
350
COVER RAIL REAR RIGHT INSIDE
350
COVER RAIL REAR LEFT INSIDE
355
CLIP FASTENING, TRIM TO FRONT WALL PILLAR, LEFT
360
STAY REAR LEFT INSIDE
360
STAY REAR RIGHT INSIDE
370
SPRING CLAMP LEFT AND RIGHT
400
PANELING A-PILLAR BOTTOM,LEFT
400
PANELING A-PILLAR, LOWER, RIGHT
410
SPRING CLAMP PANELING TO B-PILLAR TOP
420
BRACKET COVERING TO A-PILLAR, LEFT
600
MAT PARTS KIT
600
MAT PARTS KIT
