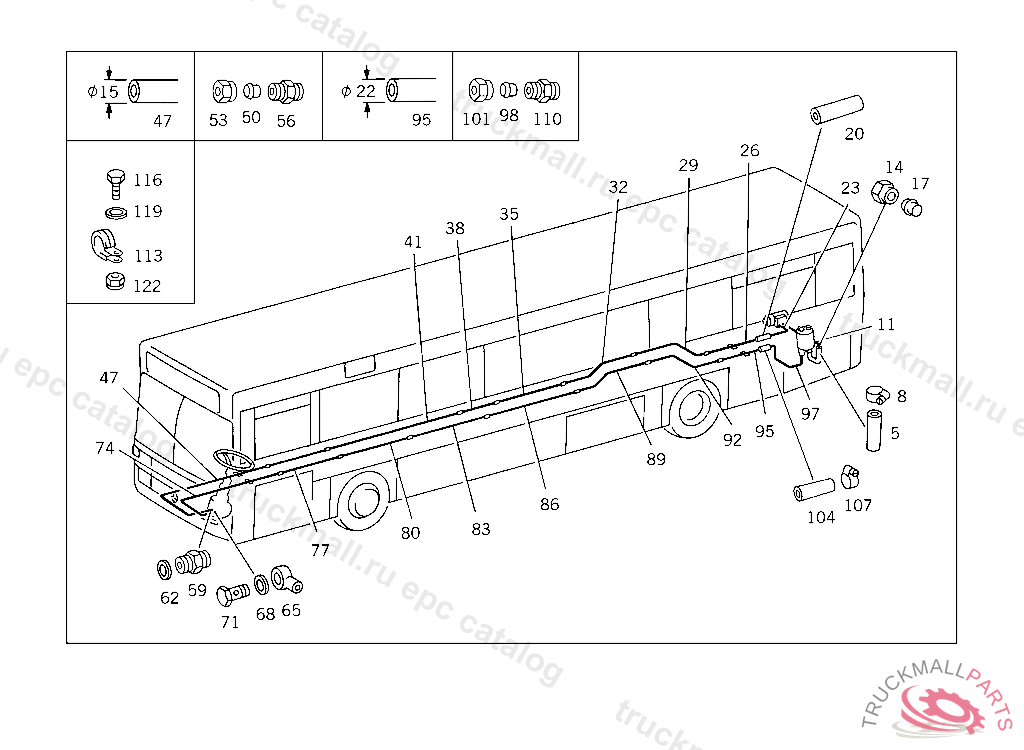

Поз.
Артикул
Описание
5
HOSE AT OIL TANK
5
HOSE FROM OIL TANK TO PUMP, USED WITH AIR BRAKE
8
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
8
LOOM TIE , Replaced By: A3509978190
8
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
11
LINE , Replaced By: A6644608588
11
LINE FROM HOSE TO PUMP
14
UNION NUT LINE CONNECTION, Replaced By: N000000006243
17
GLAND , Replaced By: A0019901267
20
HOSE ,12005921
20
HOSE FROM PUMP TO STEERING
20
HOSE FROM PUMP TO STEERING
23
LINE FROM PUMP TO HOSE
26
LINE FROM HIGH PRESSURE HOSE TO CONNECTOR "1"
26
29
LINE NO.2-TO-NO.3-CONNECTING-POINT HIGH-PRESSURE OIL-LINE
32
LINE FROM CONNECTING POINT NO.3 TO NO.4, AND FROM NO.4 TO NO.5
32
35
35
38
LINE , NOT USED
41
LINE , NOT USED
47
LINE FROM DELIVERY LINE TO STEERING
50
GLAND LINE CONNECTION
53
UNION NUT LINE CONNECTION
56
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
59
SCREW-IN FITTING , Replaced By: N003901015003
62
SEAL RING VALVE TO VALVE,K 025179
65
BANJO UNION LOW PRESSURE OIL LINE TO HYDRAULIC STEERING, 341.250 FROM CHASSIS A 002104
68
SEAL RING AT AIR COMPRESSOR
71
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
74
77
80
LINE NO.2-TO-NO.3-CONNECTING-POINT LOW-PRESSURE OIL-LINE
80
LINE , Replaced By: A3644608088
83
LINE , NOT USED
86
LINE NO.4-TO-NO.5-CONNECTING-POINT LOW-PRESSURE OIL-LINE
86
89
LINE FROM CONNECTOR III TO CONNECTOR IV
89
92
95
95
97
98
GLAND , Replaced By: A0019901267
101
UNION NUT LINE CONNECTION, Replaced By: N000000006243
104
HOSE , Replaced By: A3824667281
104
HOSE POWER STEERING
107
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
107
LOOM TIE. CLAMP HOSE TO HEATING PIPE
107
CLAMP HOSE TO FITTING AND TO OIL TANK
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
107
LOOM TIE , Replaced By: A3509978190
107
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
110
FITTING HIGH PRESSURE LINE TO STEERING
113
CLAMP HOSE TO RADIATOR BASE FRAME,B 669058
113
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
113
CLAMP DELIVERY AND SUCTION LINES TO FRAME 22/15
116
SCREW OVERLOAD PROTECTOR TO BRACKET
119
WASHER , Replaced By: N009021006208
122
NUT , Replaced By: N910113006001
