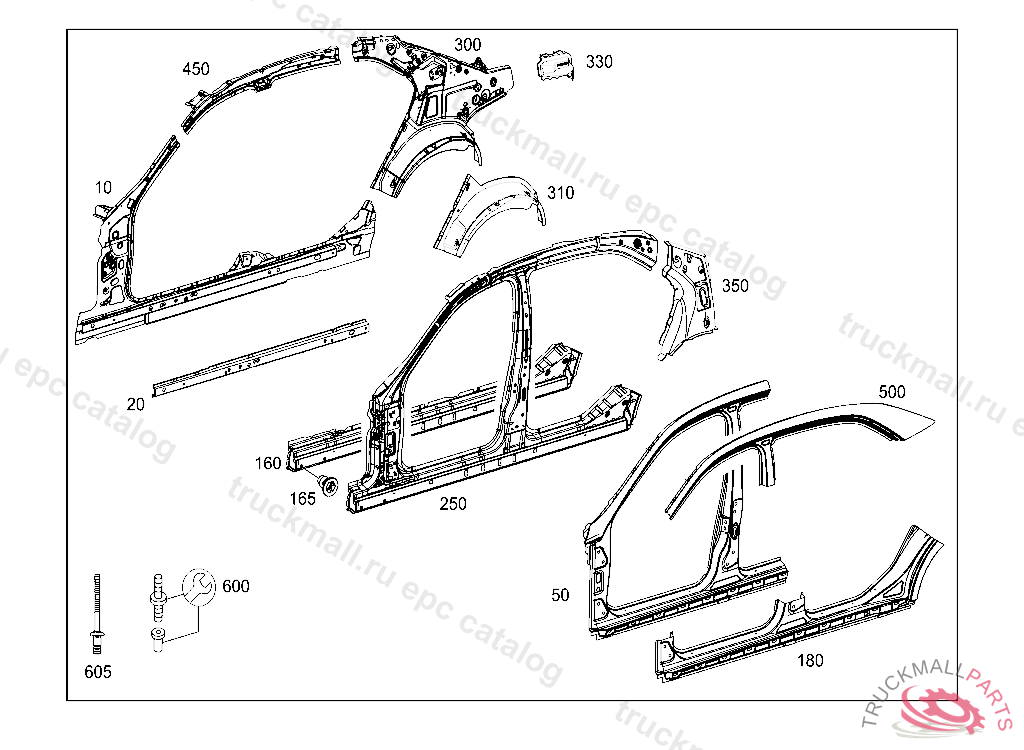

Поз.
Артикул
Описание
10
SIDEWALL INSIDE LEFT
10
SIDEWALL INSIDE RIGHT
20
REINFORCEMENT BOTTOM RIGHT
20
REINFORCEMENT BOTTOM LEFT
50
SIDEWALL OUTSIDE RIGHT
50
SIDEWALL OUTSIDE LEFT
160
LONGITUDINAL MEMBER OUTSIDE LEFT
160
LONGITUDINAL MEMBER OUTSIDE RIGHT
165
RIVETED NUT A-PILLAR, LEFT AND RIGHT
180
LONGITUDINAL MEMBER OUTSIDE LEFT
180
LONGITUDINAL MEMBER OUTSIDE RIGHT
250
SIDEWALL OUTSIDE LEFT, HOSE LINE FOR FRONT WATER DRAIN IS ALSO SUPPLIED, FOR PARTS SEE DG 78
250
SIDEWALL OUTSIDE RIGHT, HOSE LINE FOR FRONT WATER DRAIN IS ALSO SUPPLIED, FOR PARTS SEE DG 78
300
C-PILLAR INSIDE RIGHT
300
C-PILLAR INSIDE LEFT
310
WHEELHOUSE OUTER OUTSIDE RIGHT
330
REINFORCEMENT REAR RIGHT
330
REINFORCEMENT REAR LEFT
350
C-PILLAR OUTER OUTSIDE RIGHT
350
C-PILLAR OUTER OUTSIDE LEFT
450
ROOF FRAME INSIDE RIGHT
450
ROOF FRAME INSIDE LEFT
500
ROOF FRAME OUTSIDE LEFT
500
ROOF FRAME OUTSIDE RIGHT
600
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
605
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
