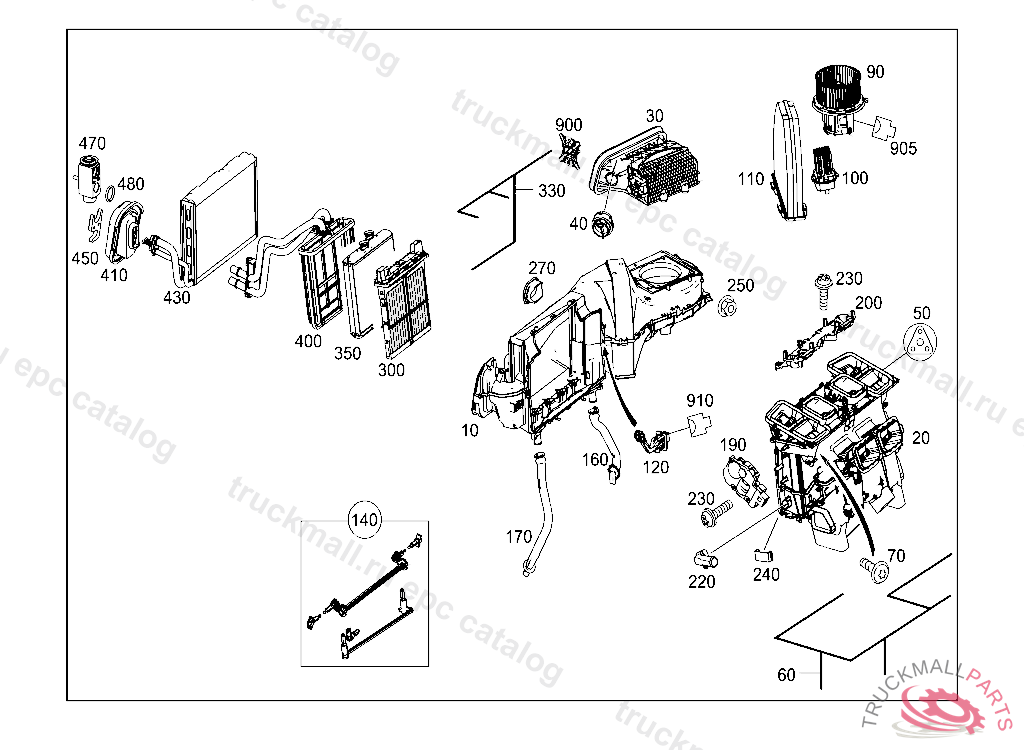

Поз.
Артикул
Описание
10
HOUSING UPPER AND LOWER HALVES
10
TS HOUSING AC HOUSING UPPER AND LOWER HALVES
20
HOUSING AIR CONDITIONER CASE
20
HOUSING AIR CONDITIONER CASE
30
HOUSING FRESH AIR/CIRCULATING AIR
50
GASKET KIT
60
ELECTRICAL WIRING HARNESS
60
ELECTRICAL WIRING HARNESS
70
PAN HEAD SCREW. SCREW GROUND CONNECTION
90
IMPELLER BLOWER
100
BLOWER REGULATOR
110
COMBINATION FILTER WITH COVER
110
COMBINATION FILTER WITH COVER, Replaced By: A2128300318
120
TEMPERATURE SENSOR EVAPORATOR
140
OPERATING LEVER PARTS KIT
140
OPERATING LEVER PARTS KIT
160
HOSE CONDENSED WATER DRAIN,RIGHT
170
MOLDED HOSE CONDENSED WATER DRAIN,LEFT
190
STEPPER MOTOR SERVOMOTOR
200
BRACKET FOR ACTUATOR MOTOR
220
VALVE LEFT
230
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
240
SPRING
250
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
270
GROMMET HEATER CASE TO FIRE WALL
300
COVER FOR HEATER BOOSTER OPENING
350
HEAT EXCHANGER
400
PIPELINE PARTS KIT
410
SEAL FIRE WALL
430
EVAPORATOR
450
RETAINING PLATE EXPANSION VALVE, A 33977120020418 E 02000020070101
470
VALVE EXPANSION VALVE
480
SEAL RING FROM LIQUID TANK TO T-FITTING
480
O-RING HOSE TO EXPANSION VALVE 17X2
905
RECEPTACLE HOUSING HEATED REAR WINDOW PANE PLUG-CONNECTION 2-PIN MCP6.3,X19
910
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
