Поз.
Артикул
Описание

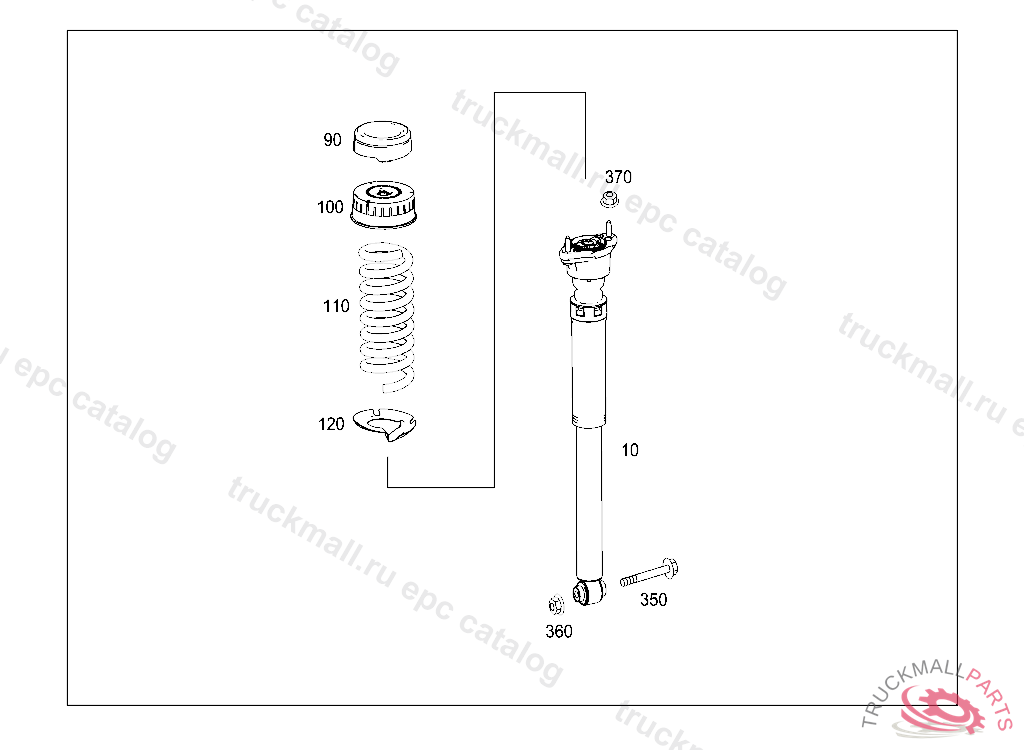

10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT AND RIGHT
90
SHIM TOP, STUD COUNT: 2 ( 9MM )
90
SHIM TOP, STUD COUNT: 4 ( 17MM )
90
SHIM TOP, STUD COUNT: 3 ( 13MM )
90
SHIM TOP, STUD COUNT: 1 ( 5MM )
100
SPRING SEAT TOP
110
REAR SPRING COLOR MARKING: 2 X RED, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
110
REAR SPRING COLOR MARKING: 1 X RED, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
120
SHIM BOTTOM
350
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
360
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
370
NUT SHOCK ABSORBER TO FRAME
