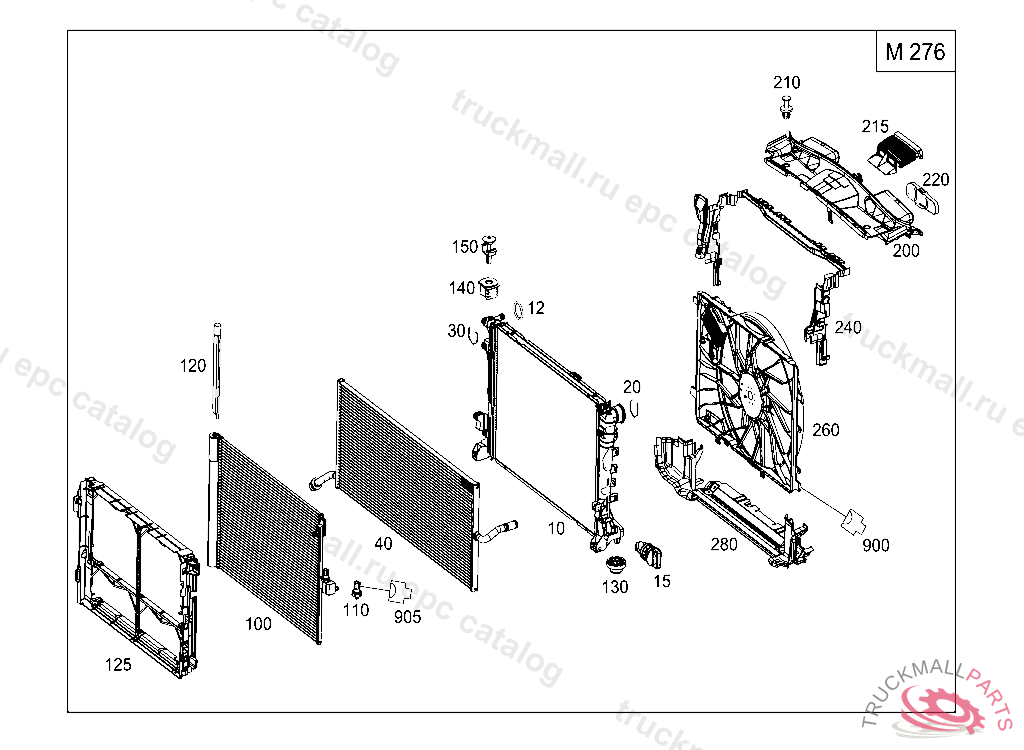

Поз.
Артикул
Описание
10
WATER COOLER
12
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
15
DRAIN PLUG DRAIN PLUG
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
40
WATER COOLER LOW TEMPERATURE
100
CAPACITOR
110
PRESSURE SENSOR
120
REFRIGERANT DRIER F AC
125
MOUNTING FRAME CONDENSER
130
ELASTOMER BEARING RADIATOR BOTTOM
130
ELASTOMER BEARING RADIATOR BOTTOM, Replaced By: A0995040212
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TOP
200
COLD AIR INDUCTION TOP
200
FAN SHROUD TOP
210
EXPANSION RIVET MOUNTING, COVER
220
COVER ON FAN SHROUD
240
AIR DUCT TOP
260
BLOWER850 W
280
AIR DUCT BOTTOM
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
905
CLUTCH. PIN BUSHING HOUSING SIREN
