Mercedes A2167800013 - НАПРАВЛЯЮЩАЯ ЛЮКА

CL 500 / CL 550 USA / JAPAN 216.371

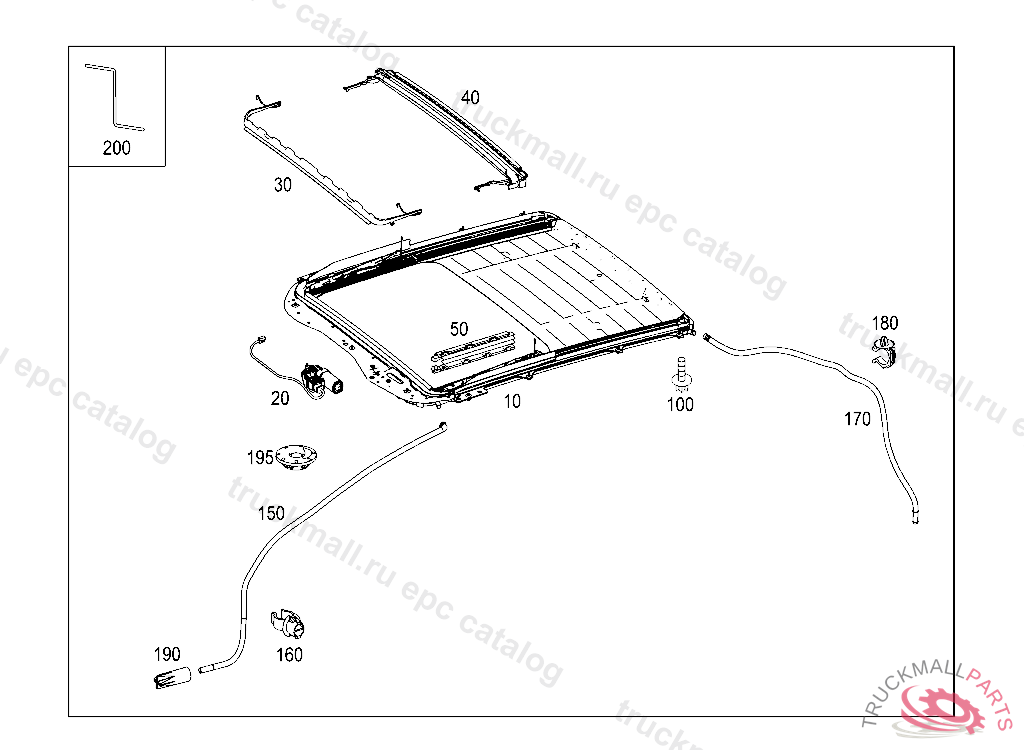

78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME

Поз.
Артикул
Описание
10
A2167800229
FRAME SLIDING ROOF
20
A2168200042
ELECTRIC MOTOR SLIDING ROOF
30
A2167800036
WIND DEFLECTOR FRONT
40
A2167800013
DRIP MOULDING REAR
50
A2167840209
ROLLER BLIND BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
50
A2167840109
ROLLER BLIND BETWEEN HEADLINER AND SLIDING ROOF, LEFT
100
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
150
A2167850301
HOSE FRONT
160
A0019953377
LINE HOLDER HOSE ATTACHMENT
170
A2167850101
HOSE REAR
180
A0009953114
LINE HOLDER WATER DRAIN
190
A2218310097
HOSE WATER DRAIN AT FRONT LEFT, PART IS INCLUDED IN SIDEWALL PACKAGE CONTENTS (DG 63)
195
A0009875244
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
200
A2028990180
KEY EMERGENCY CONTROL
