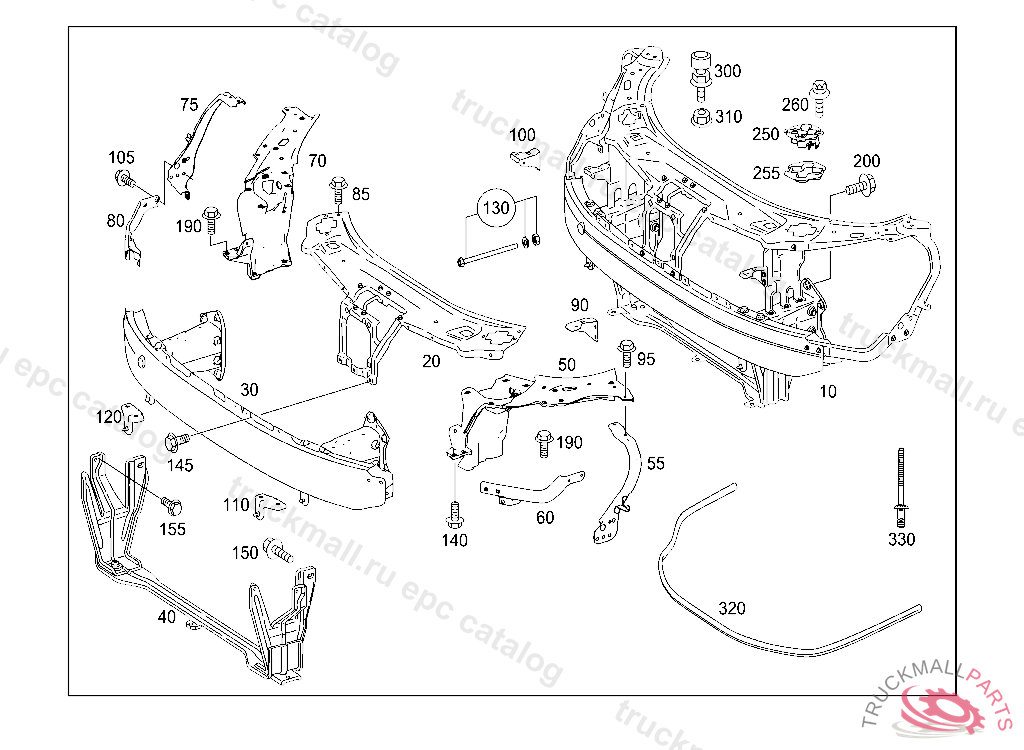

Поз.
Артикул
Описание
10
CARRIER FRONT MODULE, A 02433120090902
10
SUPPORT FRONT MODULE, A 02433020090902
20
STIFFENING CENTRAL
30
SUPPORT FRONT
40
CONSOLE FASTENING RADIATOR BOTTOM
50
FRAME FOR LIGHT LAMP UNIT TO REINFORCEMENT TOP, LEFT, Replaced By: A2166200091
50
SHELL LAMP UNIT TO REINFORCEMENT TOP, LEFT
55
SHELL LEFT
55
FRAME LEFT, Replaced By: A2166200891
60
FRAME LAMP UNIT TO REINFORCEMENT, FRONT,BOTTOM LEFT
70
SHELL LAMP UNIT TO REINFORCEMENT TOP, RIGHT
70
FRAME FOR LIGHT LAMP UNIT TO REINFORCEMENT TOP, RIGHT, Replaced By: A2166200791
75
FRAME RIGHT, Replaced By: A2166200991
75
SHELL RIGHT
80
FRAME LAMP UNIT TO REINFORCEMENT, FRONT,BOTTOM RIGHT
85
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
90
BRACKET LEFT LIGHTING UNIT
95
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
100
BRACKET RIGHT LIGHTING UNIT
105
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
110
BRACKET BUMPER,LEFT
120
BRACKET RIGHT BUMPER
130
SAFETY HOOK AT SUPPORT
140
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
145
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
150
BOLT FRONT MODULE TO LONGITUDINAL MEMBER BOTTOM M10X22.5
155
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
190
BOLT EVAPORATOR HOUSING TO CROSSMEMBER
190
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
200
BOLT FRONT MODULE TO LONGITUDINAL MEMBER BOTTOM M10X22.5
250
ENGINE HOOD CATCH LOWER PART
255
COVER TO HOOD LOCK
260
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
300
BUFFER LEFT, FROM CHASSIS: 010 077937
310
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
320
SEAL FRONT
330
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
