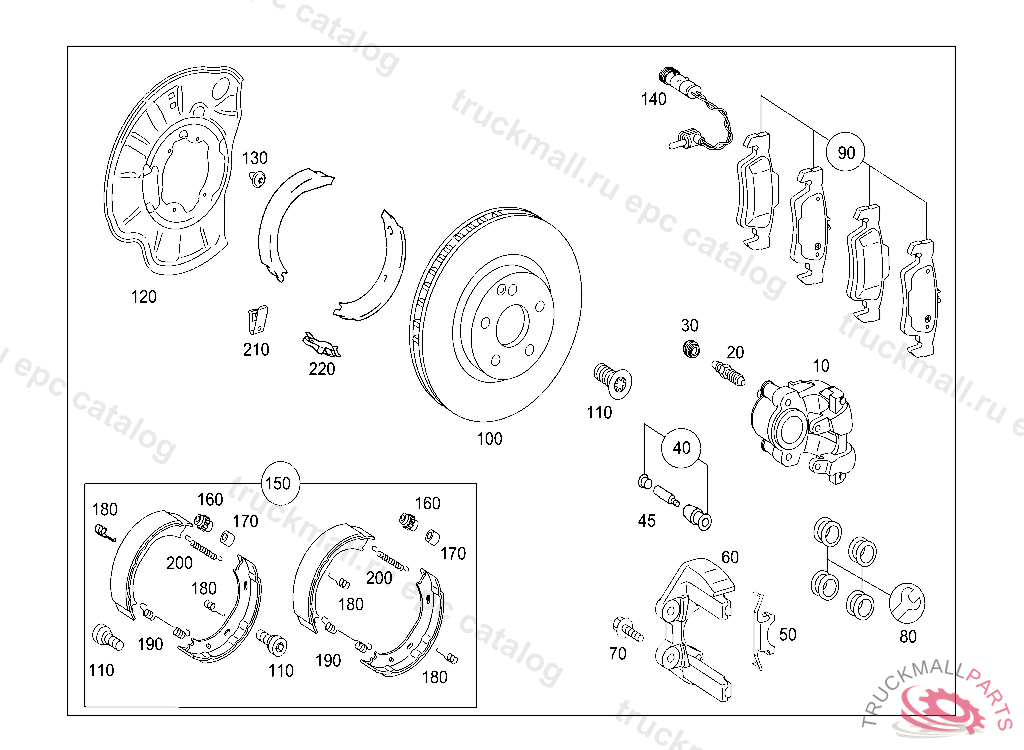

Поз.
Артикул
Описание
10
CALIPER LEFT
10
PISTON HOUSING RIGHT
20
BLEEDER VALVE
30
PROTECTIVE CAP , Replaced By: A0004217187
40
PROTECTIVE SLEEVE
45
PIN. PIVOT PIN
50
SPREADER SPRING REAR LEFT AND RIGHT
60
BRAKE ANCHOR BRAKE CALIPER, REAR AXLE
70
HEXAGON HEAD BOLT STEERING ARM TO STEERING KNUCKLE
90
TS DISK BRAKE PAD PARTS KIT, WITHOUT WEAR SENSOR, WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
100
BRAKE DISK, VENTED REAR AXLE
100
BRAKE DISC REAR AXLE, Replaced By: A2214231012
110
FITTED BOLT BRAKE DISC TO WHEEL HUB M8X12
120
PROTECTIVE PLATE BRAKE DISK, LEFT
120
PROTECTIVE PLATE BRAKE DISK, RIGHT
130
BOLT EXPANSION LOCK AND COVER PANEL TOWHEEL CARRIER M8X12
130
BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M6X12
140
BRAKE WEAR SENSOR BRAKE LINING WEAR INDICATOR
150
BRAKE SHOE PARTS KIT, CAUTION! ALSO ORDER CALIPER FASTENINGS
160
SCREW BRAKE SHOE ADJUSTMENT
170
SUPPORTING BUSH
180
SPRING BRAKE SHOES TO COVER PLATES
190
EXTENSION SPRING BRAKE SHOE PULL-BACK
200
EXTENSION SPRING BRAKE SHOE PULL-BACK
210
PRESSURE CLIPS EXPANDING LOCK
220
SHACKLE EXPANDING LOCK
