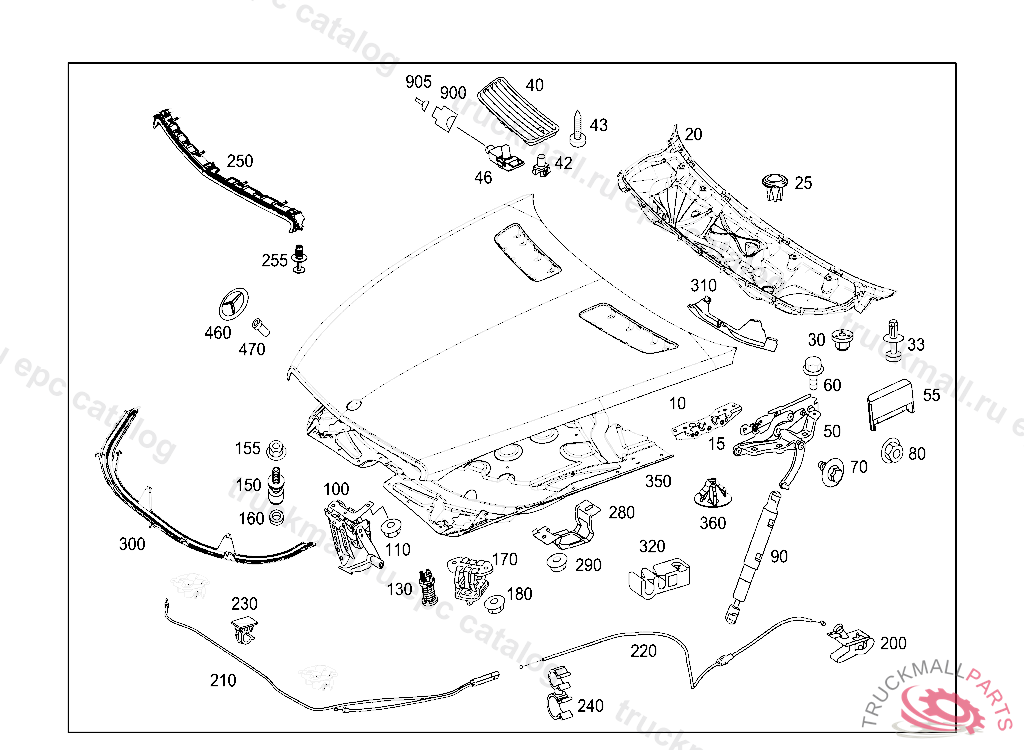

Поз.
Артикул
Описание
10
ENGINE HOOD , A 02654120100930801
10
HOOD , A 02430720090731800
15
ANGLE ENGINE HOOD, LEFT
15
ANGLE ENGINE HOOD,RIGHT
20
COVER BOTTOM
25
GROMMET COVERING
30
NUT CONTROL UNIT FIXTURE
33
RIVET MOUNTING, HANDLE
40
COVER ENGINE HOOD,RIGHT
40
COVER ENGINE HOOD, LEFT
42
COVER SUN SENSOR
43
TAPPING SCREW BRACKET TO SUPPORT
46
SENSOR SUN SENSOR
50
HINGE LEFT
50
HINGE RIGHT
60
BOLT HINGE TO LONGITUDINAL MEMBER M6X25
70
HEXALOBULAR BOLT MOUNTING PARTS M8X16
80
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
90
GAS-OPERATED SPRING TO HINGES LEFT AND RIGHT
100
RETAINING HOOK ENGINE HOOD CATCH, A 02430720090731800
100
SAFETY HOOK ENGINE HOOD CATCH, A 02654120100930801
110
NUT , Replaced By: N913023006001
130
SPRING ELEMENT ENGINE HOOD,FRONT
150
STOP BUFFER ENGINE HOOD
155
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
160
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
170
ENGINE HOOD CATCH UPPER PART
180
NUT , Replaced By: N913023006001
200
HANDLE ENGINE HOOD RELEASE CABLE
210
ENGINE HOOD RELEASE CABLE FRONT
220
ENGINE HOOD RELEASE CABLE REAR
230
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
240
CLAMP. EXTENDABLE SPACER BREATHER LINE
250
BEAM RADIATOR SHELL, TOP, A 02430720090731800
255
RIVET BUSHING AND LEVER TO CAB
280
BRACKET AT ENGINE HOOD FRONT LEFT AND RIGHT
290
NUT , Replaced By: N913023006001
300
ENGINE COVER FRONT
310
COVER REAR LEFT
310
COVER REAR RIGHT
350
INSULATION AT ENGINE HOOD
360
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
460
COMPANY SIGN
460
BADGE , Replaced By: A2078170316
470
GROMMET MERCEDES STAR TO REAR LID
900
CLUTCH. PIN BUSHING HOUSING SIREN
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
