Главная
›
Mercedes
›
CAR
›
CL 500 4MATIC BlueEFFICIENCY
›
216.394
›

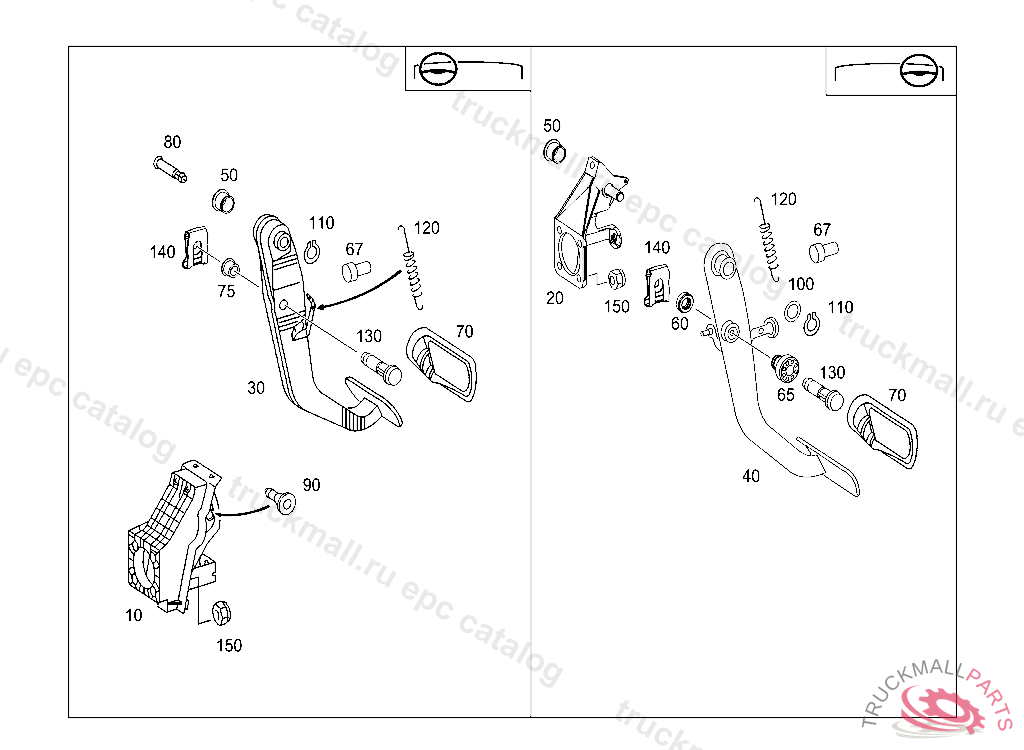

29 PEDAL ASSEMBLY
›
015 PEDAL ASSEMBLY WITH BEARING
Mercedes A1232910082 - Накладка педали тормоза
CL 500 4MATIC BlueEFFICIENCY 216.394
29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
Поз.
Артикул
Описание
10
A2202901119
BEARING BRACKET
10
A2212900319
BEARING BRACKET PEDAL ASSEMBLY, A 02430720090731800
30
A2202902918
PEDAL
30
A2402900218
PEDAL BRAKE
50
A1242920050
BUSHING BRAKE PEDAL
67
A2112920086
BUFFER STOP AT BEARING BRACKET
70
A2302900082
PAD TO BRAKE PEDAL
70
A1232910082
PAD BRAKE PEDAL
75
A2102920150
BUSHING PEDAL ASSEMBLY
80
A1682910374
PIN CLUTCH PEDAL TO BEARING BRACKET
90
A1682910055
PLUG
120
A0009933411
SPRING TO BRAKE PEDAL
130
A2032920174
PIN BRAKE PEDAL TO BRAKE BOOSTER
130
A2042920074
PIN BRAKE UNIT TO PEDAL ASSEMBLY
140
N912002008003
LOCK PULL TO FASTENER
150
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
