Поз.
Артикул
Описание

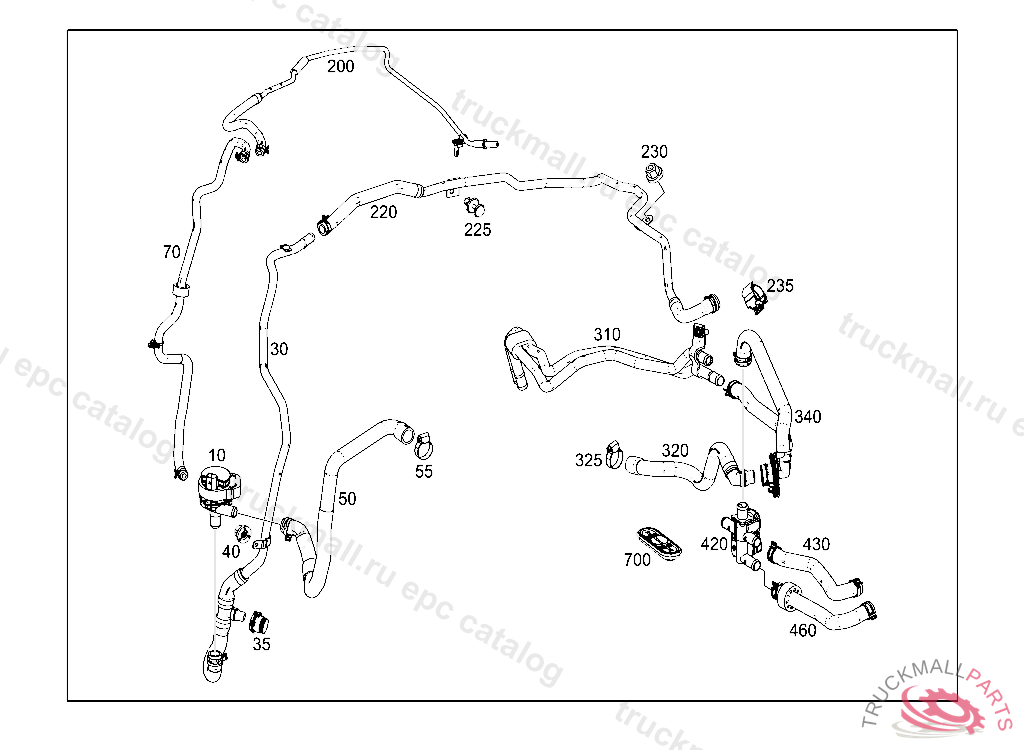

10
CIRCULATION PUMP , A 06254720120629
30
PIPELINE RETURN
40
NUT CONTROL UNIT FIXTURE
70
HOSE ASSEMBLY RECIRCULATION, WINDOW WASHER HEATING
200
HOSE ASSEMBLY FEED, PANE WASHER WATER HEATING
220
HOSE ASSEMBLY RETURN
220
HOSE ASSEMBLY RETURN
235
LINE FASTENER RETURN LINE FASTENING
310
PIPING GROUP RETURN
320
HOSE ASSEMBLY FEED, FROM ENGINE TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED LINE,BETWEEN ENGINE AND VALVE
340
HOSE ASSEMBLY FEED LINE,BETWEEN ENGINE AND VALVE
420
VALVE CHANGE-OVER VALVE
430
HOSE ASSEMBLY INLET, FROM VALVE TO HEAT EXCHANGER
460
HOSE ASSEMBLY RETURN, FROM HEAT EXCHANGER TO VALVE
700
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
