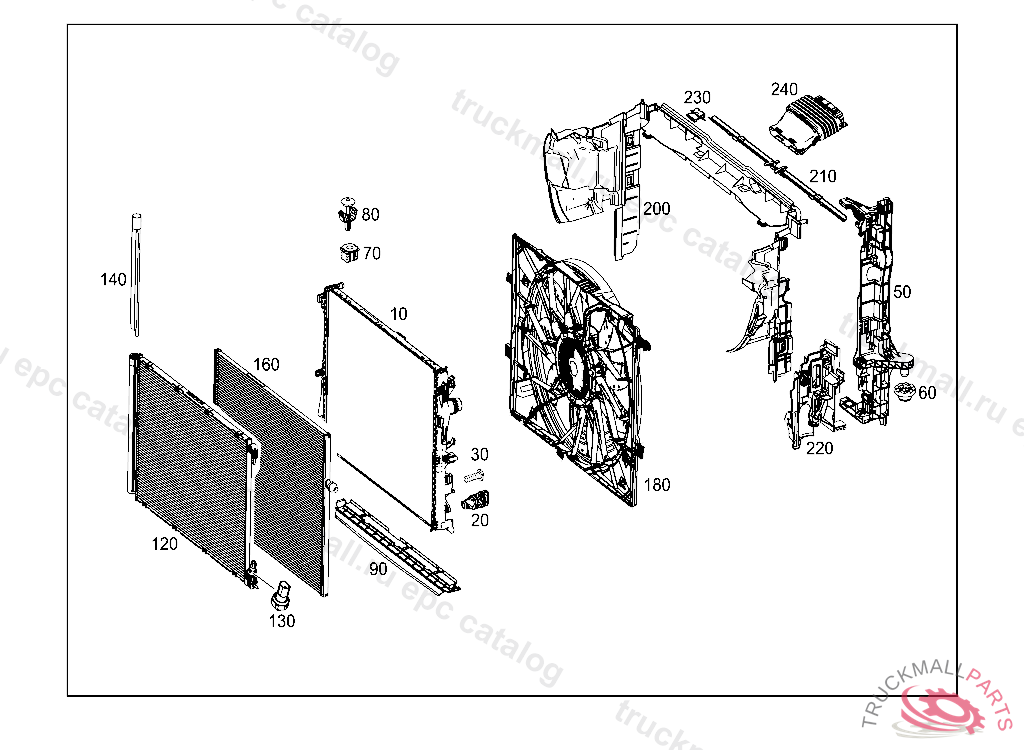

S 400 4-MATIC - 217.367 - 50 RADIATOR
Поз.
Артикул
Описание
10
WATER COOLER
20
DRAIN PLUG DRAIN PLUG
30
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
50
SUPPORTING FRAME LEFT
50
SUPPORTING FRAME TO RIGHT RADIATOR
60
RUBBER MOUNT BOTTOM LEFT & RIGHT
70
BEARING TOP LEFT AND RIGHT, J 06236120041209
80
CLIP RADIATOR TO SUPPORT
90
RADIATOR GRILLE RADIATOR BOTTOM
120
REFRIGERANT CONDENSER
130
PRESSURE SENSOR
140
REFRIGERANT DRIER
160
WATER COOLER LOW TEMPERATURE
180
BLOWER850 WATT
200
AIR DUCT SEGMENT
210
AIR DUCT RADIATOR
220
AIR DUCT BOTTOM RIGHT
220
AIR DUCT BOTTOM LEFT
230
BRACKET
240
AIR DUCT
