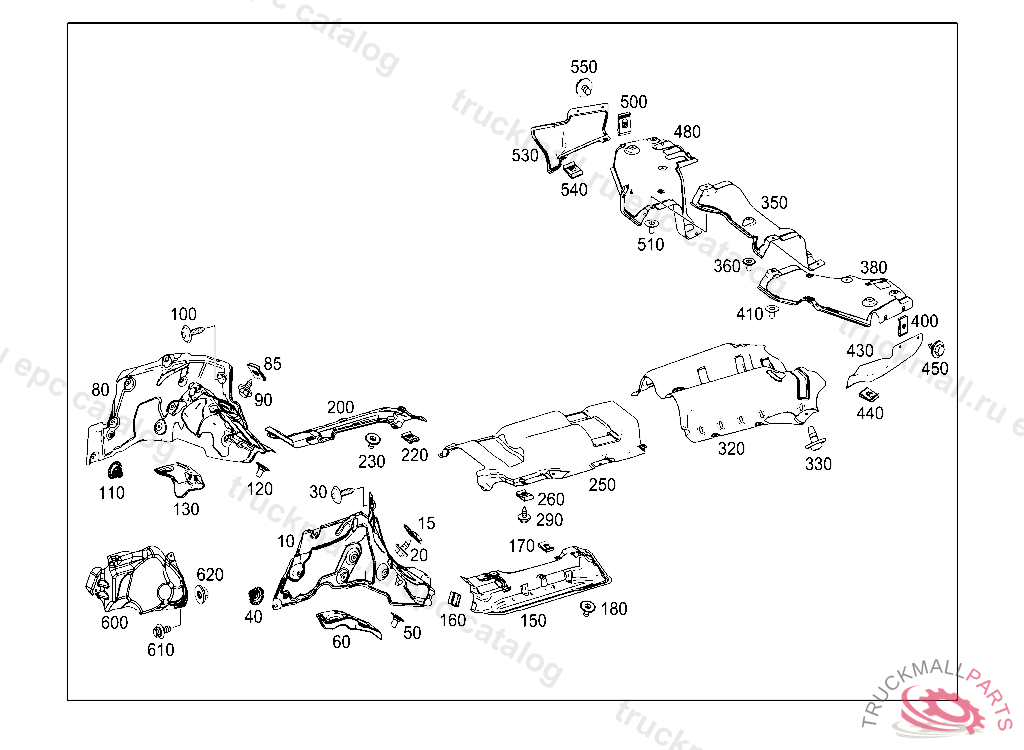

Поз.
Артикул
Описание
10
SHIELDING AT LEFT SIDE MEMBER
30
FILLISTER HD SCREW MOUNTING SHIELD RIGHT 5X16
40
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
50
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
SHIELDING LEFT INSIDE
80
SHIELDING AT RIGHT SIDE MEMBER
100
FILLISTER HD SCREW MOUNTING SHIELD RIGHT 5X16
110
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
120
HEXAGON NUT W COLLAR BRACKET MOUNTING
130
SHIELDING RIGHT INSIDE
150
SHIELDING TO MAIN FLOOR LEFT
160
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
170
LOCK RIGHT PANELLING TO SIDE MEMBER
180
HEXAGON NUT W COLLAR BRACKET MOUNTING
200
SHIELDING FLOOR,RIGHT
220
LOCK RIGHT PANELLING TO SIDE MEMBER
230
HEXAGON NUT W COLLAR BRACKET MOUNTING
250
SHIELDING FRONT CATALYTIC CONVERTOR
260
LOCK RIGHT PANELLING TO SIDE MEMBER
290
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
320
SHIELDING UNDER TANK, A 20140117
330
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
350
SHIELDING CENTER REAR MUFFLER
360
HEXAGON NUT W COLLAR BRACKET MOUNTING
380
SHIELDING REAR MUFFLER LEFT
400
LOCK RIGHT PANELLING TO SIDE MEMBER
410
HEXAGON NUT W COLLAR BRACKET MOUNTING
430
SHIELDING REAR MUFFLER, LEFT, OUTER
440
LOCK RIGHT PANELLING TO SIDE MEMBER
450
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
480
SHIELDING REAR MUFFLER RIGHT
500
LOCK RIGHT PANELLING TO SIDE MEMBER
510
HEXAGON NUT W COLLAR BRACKET MOUNTING
530
SHIELDING REAR MUFFLER, RIGHT, OUTER
540
LOCK RIGHT PANELLING TO SIDE MEMBER
550
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
