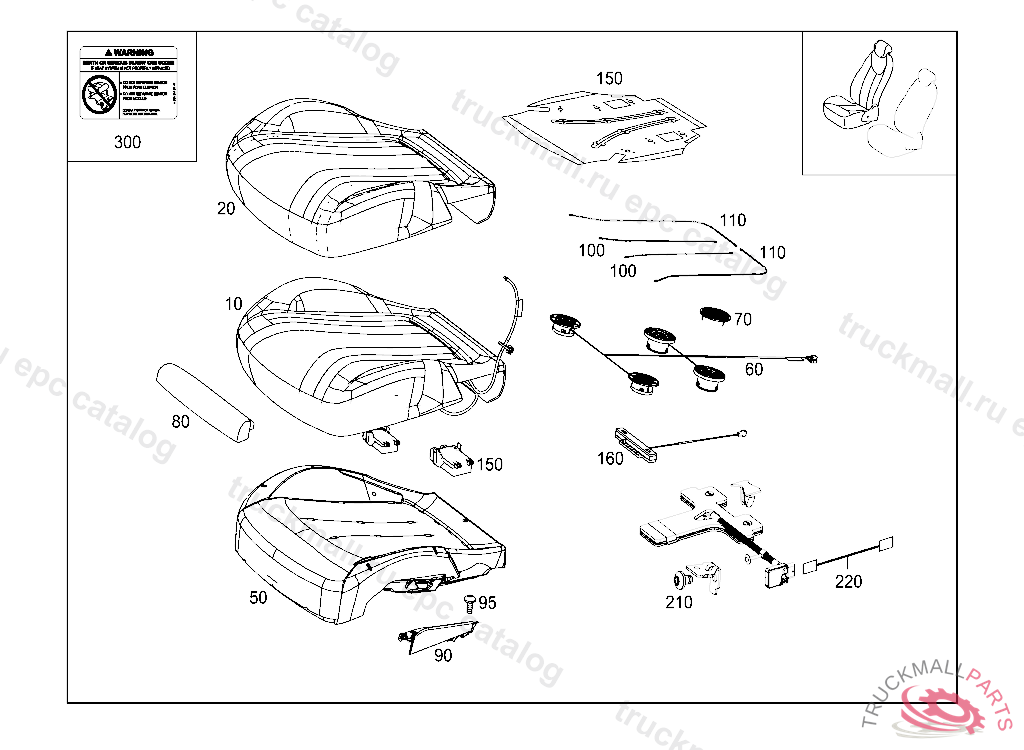

S 63 AMG 4-MATIC - 217.378 - 91 DRIVER'S SEAT

Поз.
Артикул
Описание
10
A2179104002
FRONT SEAT CUSHION RIGHT SEAT
10
A2179105801
FRONT SEAT CUSHION RIGHT SEAT
10
A2179103702
FRONT SEAT CUSHION RIGHT SEAT
10
A2179100402
FRONT SEAT CUSHION RIGHT SEAT
10
A2179107204
FRONT SEAT CUSHION RIGHT SEAT
10
A2179106804
FRONT SEAT CUSHION RIGHT SEAT
10
A2179103402
FRONT SEAT CUSHION RIGHT SEAT
10
A2179106004
FRONT SEAT CUSHION RIGHT SEAT
10
A2179105001
FRONT SEAT CUSHION RIGHT SEAT
10
A2179107404
FRONT SEAT CUSHION RIGHT SEAT
10
A2179106204
FRONT SEAT CUSHION RIGHT SEAT
20
A2179101000
COVER FRONT SEAT CUSHION LEATHER
20
A2179104902
COVER FRONT SEAT CUSHION EXCLUSIVE LEATHER TRIM
20
A2179107000
COVER FRONT SEAT CUSHION EXCLUSIVE LEATHER TRIM
20
A2179104802
COVER FRONT SEAT CUSHION LEATHER
20
A2179101400
COVER FRONT SEAT CUSHION "NAPPA" LEATHER
50
A2179107401
PAD FRONT SEAT CUSHION RIGHT SEAT
50
A2179106601
PAD FRONT SEAT CUSHION RIGHT SEAT
60
A0999066700
FAN RIGHT SEAT
70
A2209140036
COVER
80
A2229100008
CUSHION PADDING RIGHT SEAT
90
A2229107409
SUPPORT PLATE ON DOOR SIDE
90
A2229130210
SUPPORT PLATE TUNNEL-SIDE
95
N000000003251
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
100
A2179140000
HANG UP CLAMP RIGHT SEAT, CENTER
110
A2179140100
HANG UP CLAMP LEFT SEAT, OUTER
150
A2179063000
SEAT HEATING RIGHT SEAT
150
A2179063200
SEAT HEATING RIGHT SEAT
150
A2179060995
SEAT HEATING RIGHT SEAT
160
A2228700010
SENSOR MAT SEAT OCCUPATION RECOGNITION
210
A0029846129
BOLT RIGHT SEAT M5X8
220
A2225409913
ELECTRICAL WIRING HARNESS WEIGHT SENSING
300
A2178000178
VALVE BLOCK LEFT BACKREST, Replaced By: A2178000000
300
A0005842147
WARNING STRIP WEIGHT SENSING
999
A2229005406
CONTROL UNIT REAR SEAT BENCH HEATING, A 20131207
