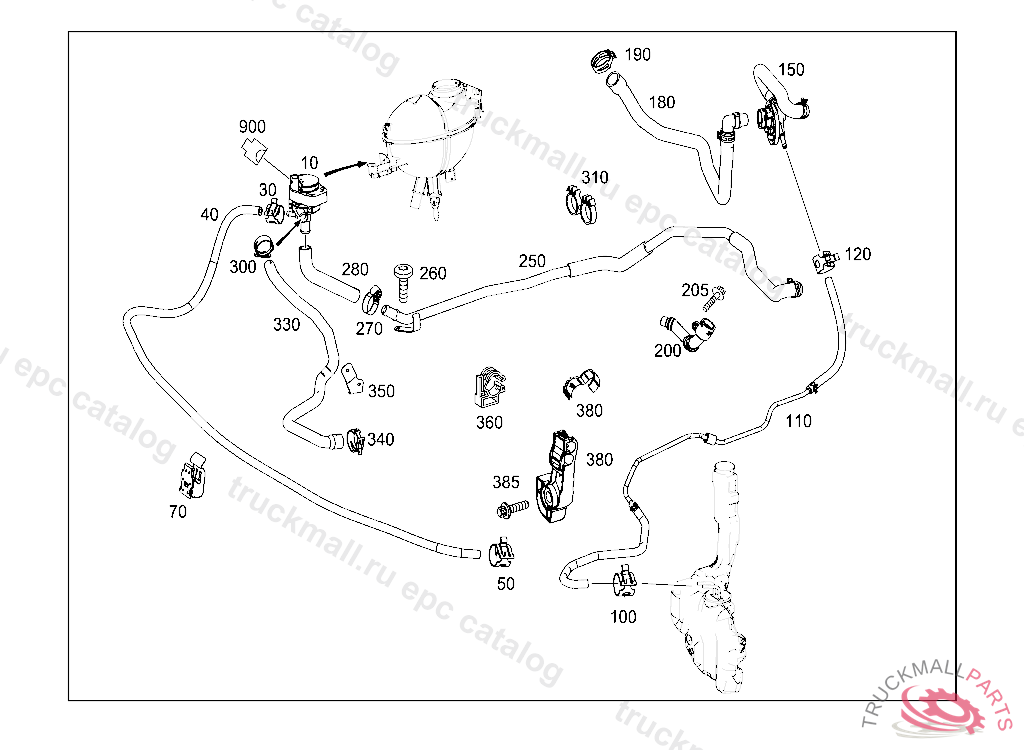

Поз.
Артикул
Описание
10
CIRCULATION PUMP , A 06254720120629
10
CIRCULATION PUMP
30
CLAMP14 MM
40
HOSE FROM RECIRCULATING PUMP TO HEAT EXCHANGER
50
CLAMP14 MM
70
BRACKET FASTENING, HOSES
100
CLAMP14 MM
110
LINE FROM HEAT EXCHANGER TO DISTRIBUTOR
120
CLAMP14 MM
150
HOSE FEED TO HEAT EXCHANGER
150
HOSE FEED TO HEAT EXCHANGER
150
HOSE ASSEMBLY FEED TO HEAT EXCHANGER, A 03708020111124
150
HOSE LINE FEED TO HEAT EXCHANGER
180
HOSE ASSEMBLY FROM ENGINE TO FEED LINE
180
HOSE BETWEEN ENGINE AND DISTRIBUTOR
250
HOSE ASSEMBLY RETURN, A 03387320111031802
250
LINE RETURN
260
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
270
CLAMP25 MM
280
HOSE ASSEMBLY FROM RETURN LINE TO RECIRCULATING PUMP
300
CLAMP25 MM
330
HOSE BETWEEN RECIRCULATING PUMP AND ENGINE
330
HOSE BETWEEN RETURN LINE AND ENGINE
340
SPRING HOSE CLAMP HOSE FASTENING,230301
350
BRACKET AT SIDE MEMBER
350
BRACKET AT SIDE MEMBER
380
BRACKET AT BRACKET
380
LINE FASTENER RETURN LINE TO ENGINE
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
