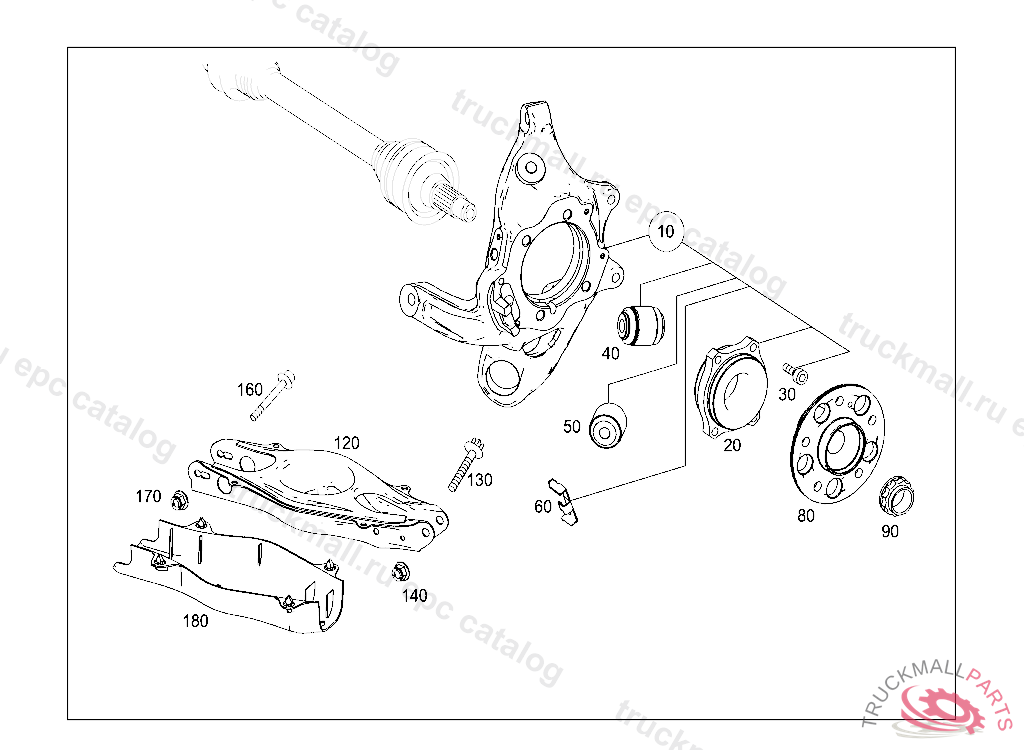

Поз.
Артикул
Описание
10
WHEEL CARRIER RIGHT, Replaced By: A2123500241
10
WHEEL CARRIER LEFT, Replaced By: A2123500141
10
WHEEL CARRIER RIGHT
10
WHEEL CARRIER LEFT
20
ANGULAR CONTACT BEARING , OBSERVE WIS
30
BOLT WHEEL BEARING TO WHEEL CARRIER
40
JOINT SPRING CONTROL ARM TO WHEEL BEARING
50
CONTROL ARM BUSHING THRUST ARM TO WHEEL BEARING LEFT
50
RUBBER MOUNT THRUST ARM TO WHEEL BEARING
60
PLUG TO WHEEL CARRIER
80
FLANGE
90
COLLAR NUT REAR AXLE SHAFT TO HUB
120
SPRING CONTROL ARM
120
SPRING CONTROL ARM
130
SCREW W RND. HEXAL. HEAD SPRING CONTROL ARM TO WHEEL BEARING RIGHT M14X1,5X81,5
130
SCREW W RND. HEXAL. HEAD SPRING CONTROL ARM TO WHEEL BEARING M14X81,5
140
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
160
BOLT SPRING LINK TO REAR AXLE BRACKET LEFT M12X1,5X110
170
NUT SPECIAL SHAPE TIE ROD TO WHEEL BEARING M12X1,5
170
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
180
COVER LEFT SPRING CONTROL ARM
180
COVER RIGHT SPRING CONTROL ARM
180
COVER LEFT SPRING CONTROL ARM
180
COVER RIGHT SPRING CONTROL ARM
