Mercedes N304017008034 - Болт крепления

CLS 350 BLUETEC 4MATIC 218.394

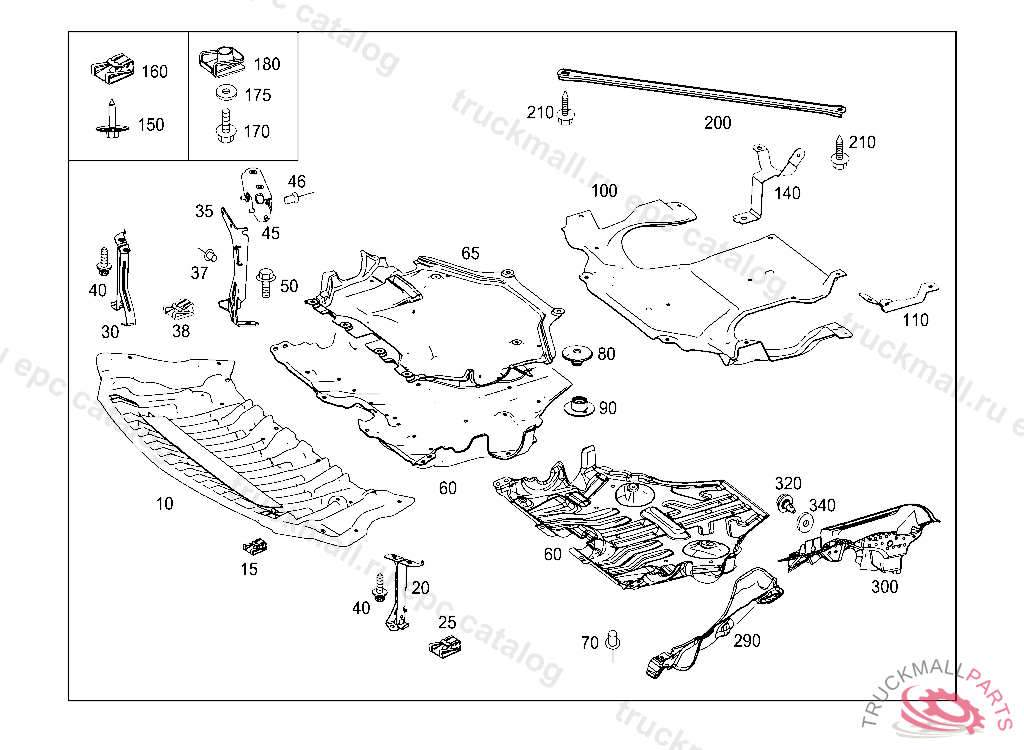

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
15
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
20
A2045241340
BRACKET LEFT
30
A2045241440
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
80
A2019880481
FASTENER BUTTON UPPER PART
90
A2019880381
FASTENER BUTTON LOWER PART
110
A2125240740
BRACKET REAR LEFT
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
160
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
200
A2045240547
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
A0049904500
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
320
A0009901617
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
