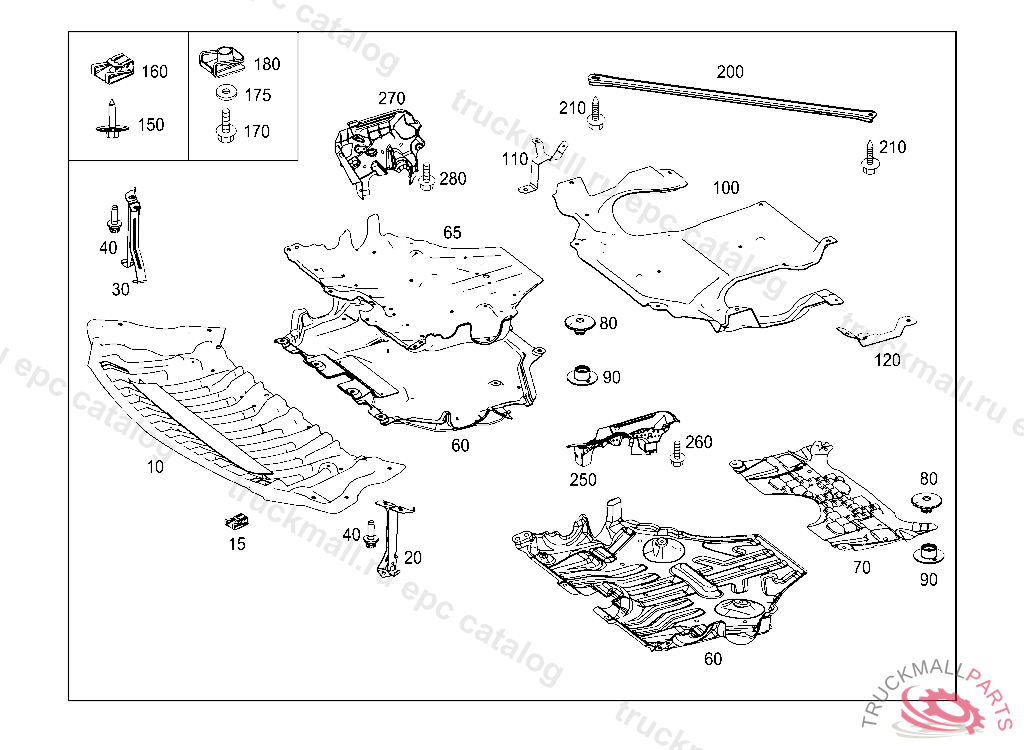

Поз.
Артикул
Описание
10
ENCAPSULATION FRONT, A 20131031
10
ENCAPSULATION FRONT, A 20131031
10
ENCAPSULATION FRONT
15
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
20
BRACKET LEFT
30
BRACKET RIGHT
40
HEXALOBULAR BOLT. SCREW
60
ANTINOISE CAPSULE CENTRAL, A 20131220
60
UNDERBODY GUARD CENTRAL
65
COVER F ENGINE COMP. BM ANTINOISE CAPSULE, A 20131220
70
DAMPING MAT FOR PROTECTIVE SHIELD
80
FASTENER BUTTON UPPER PART
90
FASTENER BUTTON LOWER PART
100
ENCAPSULATION REAR
100
ENCAPSULATION REAR
110
BRACKET FASTENING, RIGHT REAR NOISE CAPSULE
110
BRACKET FASTENING, RIGHT REAR NOISE CAPSULE
120
BRACKET REAR LEFT
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
160
LOCK. CLIP-TYPE NUT
160
SPRING-THREAD NUT PROTECTIVE PLATE
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
200
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
260
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
280
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
