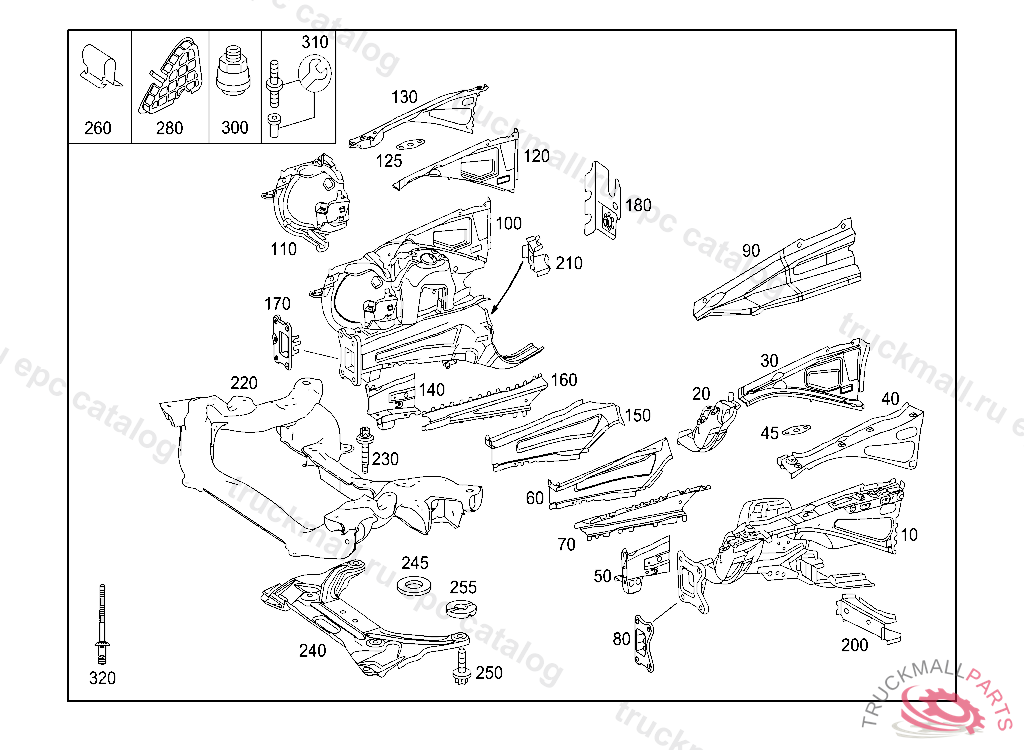

Поз.
Артикул
Описание
10
WHEELHOUSE LEFT
20
WHEELHOUSE FRONT LEFT
30
SIDE MEMBER INSIDE TOP LEFT
40
SIDE MEMBER LEFT SIDE MEMBER,OUTSIDE, A 06331420051208
45
PLATE AT SIDE MEMBER
50
SIDE MEMBER FRONT LEFT OUTSIDE
60
SIDE MEMBER LEFT INSIDE
70
REINFORCEMENT LEFT SIDE MEMBER
80
CONSOLE PLATE TO WHEELHOUSE LINER, LEFT
90
REINFORCEMENT LEFT SIDE MEMBER
90
REINFORCEMENT RIGHT SIDE MEMBER
100
WHEELHOUSE RIGHT
110
WHEELHOUSE FRONT RIGHT
120
SIDE MEMBER INSIDE TOP RIGHT
125
PLATE AT SIDE MEMBER
130
SIDE MEMBER RIGHT SIDE MEMBER,OUTSIDE, A 06331420051208
140
SIDE MEMBER FRONT RIGHT OUTSIDE
150
SIDE MEMBER RIGHT INSIDE
160
REINFORCEMENT RIGHT SIDE MEMBER
170
CONSOLE PLATE TO WHEELHOUSE LINER, RIGHT
180
HOLDER RH RIGHT WASHER FLUID RESERVOIR
180
HOLDER LH LEFT WASHER FLUID RESERVOIR, NO LONGER AVAILABLE
200
SUPPORT LEFT
210
SUPPORT RIGHT
220
SUPPORT AT SIDE MEMBER
230
BOLT SUPPORT TO SIDE MEMBER
240
PLATE STEERING MOUNTING
245
WASHER PLATE TO SUPPORT 28/15/2,5
245
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
250
BOLT FRONT SUBFRAME TO SIDE MEMBER M12X1.5 X 42
255
SPACER DISK REAR FRAME-TYPE INTEGRAL SUPPORT
260
EDGE GUARD TO FRAME-TYPE INTEGRAL SUPPORT
280
ESCUTCHEON RIGHT WHEELHOUSE
300
WELD STUD GROUND CONNECTION M6X13
310
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
320
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
