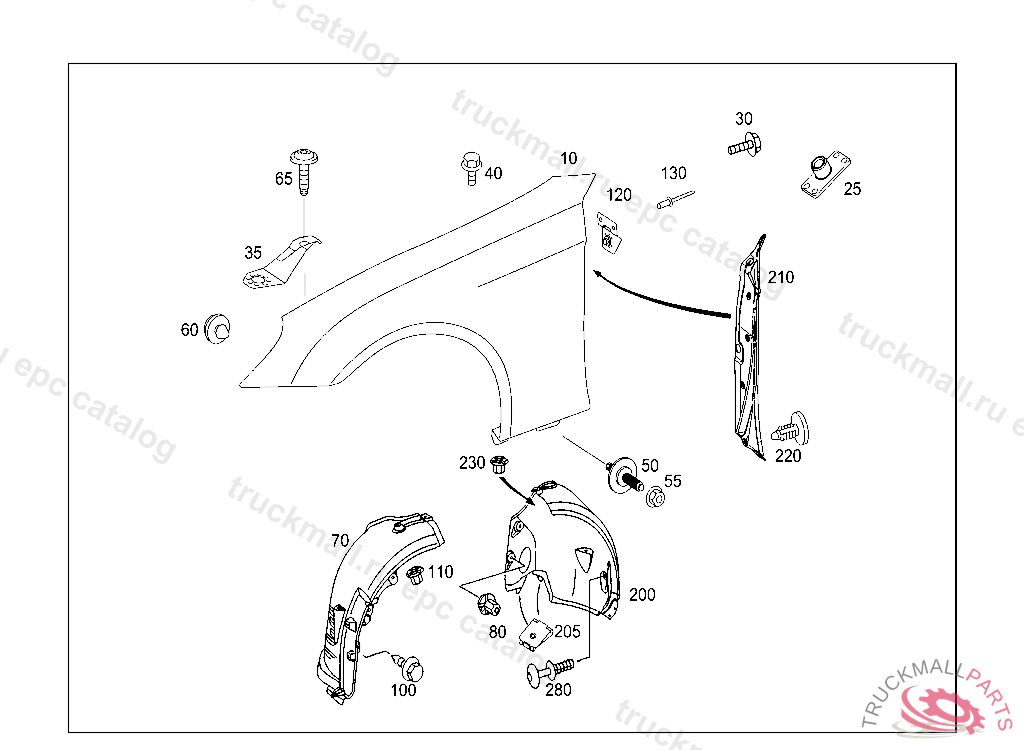

Поз.
Артикул
Описание
10
FRONT FENDER RIGHT, A 01359720050113 TO BE ADAPTED DURING ASSEMBLY
10
FRONT FENDER LEFT, A 01359720050113 TO BE ADAPTED DURING ASSEMBLY
30
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
35
REINFORCEMENT FENDER TO RIGHT LONGITUDINAL MEMBER
35
REINFORCEMENT FENDER TO LEFT LONGITUDINAL MEMBER
40
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
50
ADJUSTING SCREW FENDER BOTTOM RIGHT MOUNTING M6X44.5
55
NUT FENDER ON SIDE PANEL M6
60
RUBBER BUMPER ON FENDER, FRONT LEFT AND RIGHT
65
BOLT FENDER TO SUPPORT M6X20
70
COVER RIGHT FRONT WHEEL ARCH
70
COVER LEFT FRONT WHEEL ARCH
80
PLASTIC NUT. NUT
100
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
110
PLASTIC NUT. NUT
120
BRACKET TO FENDER RIGHT
120
BRACKET TO FENDER LEFT
130
BLIND RIVET TAXIMETER TO ROOF RAIL 6.4X14
200
COVER LEFT REAR WHEEL ARCH
200
COVER RIGHT REAR WHEEL ARCH
205
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
210
COVER TO FENDER LEFT
210
COVER TO FENDER RIGHT
220
STOP PLUG BRAKE CABLE
230
PLASTIC NUT. NUT
280
RIVET COVERING TO SIDE MEMBER
