Поз.
Артикул
Описание

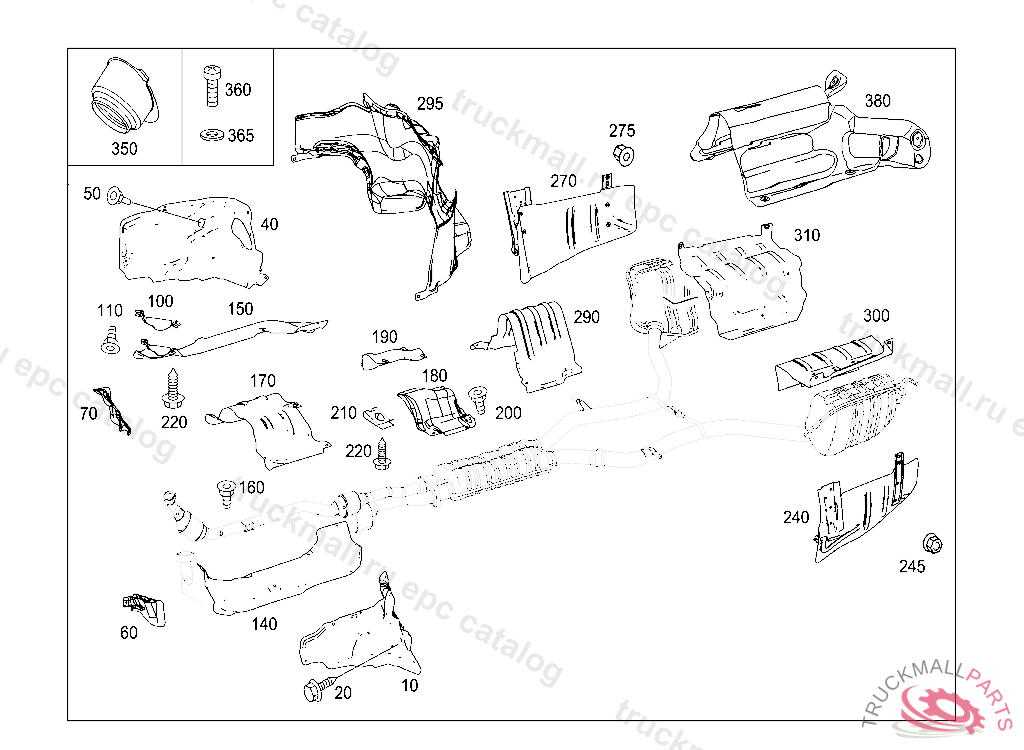

10
SHIELDING LEFT SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
20
SCREW
40
SCREENING RIGHT SIDE MEMBER
50
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
SCREENING FIRE WALL, LEFT
70
SCREENING FIRE WALL,RIGHT
100
SCREENING FRONT PANEL TO BATTERY SUPPORT
110
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
SCREENING FLOOR,LEFT
150
SCREENING MAIN FLOOR,ON THE RIGHT
160
HEXAGON NUT W COLLAR BRACKET MOUNTING
170
SCREENING OVER CATALYST
180
SCREENING LEFT, BRAKE CABLE COMPENSATOR
190
SCREENING RIGHT, BRAKE CABLE COMPENSATOR
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
220
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
220
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
240
SCREENING REAR MUFFLER LEFT
245
NUT , Replaced By: N913023006001
270
SCREENING REAR MUFFLER RIGHT
275
HEXAGON NUT W COLLAR BRACKET MOUNTING
290
SCREENING CENTRAL MUFFLER
300
SCREENING REAR MUFFLER, LEFT, INSIDE
310
SCREENING REAR MUFFLER RIGHT, INSIDE
380
COVER BELOW FUEL TANK
