Главная
›
Mercedes
›
CAR
›
CLS 280 / CLS 300
›
219.354
›
78 SLIDING ROOF
›

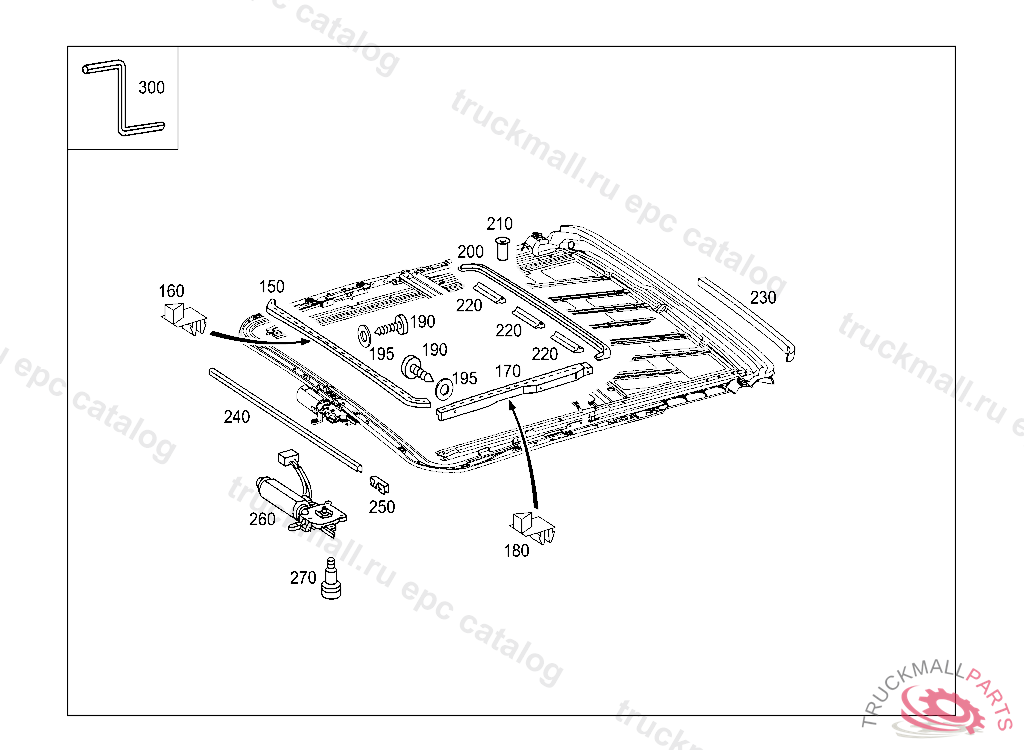

045 SLIDING/LIFTING ROOF FRAME IL. 2
Mercedes A2209900136 - Болт
CLS 280 / CLS 300 219.354
78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME IL. 2
Поз.
Артикул
Описание
150
A2197820024
RAIL FRONT
160
A1247820505
SPACER FRONT RAIL
160
A1247820605
SPACER RAIL
170
A2117820124
RAIL LEFT
170
A2117820224
RAIL RIGHT
180
A1247820505
SPACER FRONT RAIL
190
A2209900136
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
195
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
200
A1247820124
RAIL REAR
210
N007337003104
BLIND RIVET ATTACHMENT,RAIL
220
A1157840497
PAD
230
A2037820197
PAD AT FRAME, LEFT 12MM, TO BE ADAPTED DURING ASSEMBLY
230
A2037820297
PAD AT FRAME,RIGHT 12MM, TO BE ADAPTED DURING ASSEMBLY
240
A2107800213
RAIL BOTTOM FRAME
250
A1409881478
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
260
A2038203142
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
270
A2027820071
SCREW MOTOR TO FRAME
