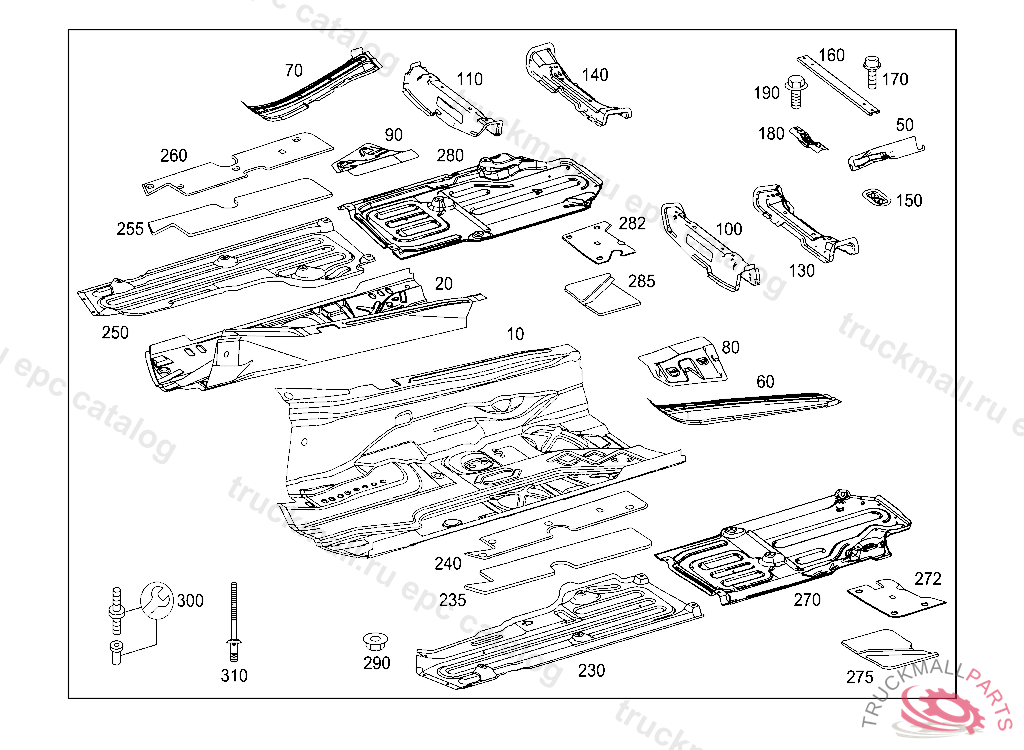

Поз.
Артикул
Описание
10
BOTTOM LEFT
10
BOTTOM LEFT
20
BOTTOM RIGHT
20
BOTTOM RIGHT
50
REINFORCEMENT ON TUNNEL
60
SIDE MEMBER FRONT LEFT
70
SIDE MEMBER FRONT RIGHT
80
REINFORCEMENT MAIN FLOOR,FRONT LEFT
90
REINFORCEMENT MAIN FLOOR,FRONT RIGHT
100
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
110
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT, THEFT-RELEVANT PART
130
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
140
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
150
CONSOLE CROSSMEMBER DRIVER SIDE, REAR
160
STRUT BETWEEN MAIN FLOOR LEFT AND RIGHT
170
HEXALOBULAR BOLTM8X16
180
REINFORCEMENT CROSSMEMBER DRIVER SIDE, REAR
190
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
230
PANELING BELOW MAIN FLOOR, FRONT LEFT
235
COVER BELOW MAIN FLOOR, FRONT LEFT
240
SUBSTRUCTURE INSULATION BETWEEN FLOOR AND UNDERFLOOR PANELING, LEFT
250
PANELING BELOW MAIN FLOOR, FRONT RIGHT
255
COVER BELOW MAIN FLOOR, FRONT RIGHT
260
SUBSTRUCTURE INSULATION COVERING FRONT RIGHT
270
COVER BELOW MAIN FLOOR, REAR LEFT
272
PANELING REAR LEFT
275
SUBSTRUCTURE INSULATION BETWEEN FLOOR AND UNDERFLOOR PANELING, LEFT
280
COVER BELOW MAIN FLOOR, REAR RIGHT
282
PANELING REAR RIGHT
285
SUBSTRUCTURE INSULATION BETWEEN FLOOR AND UNDERFLOOR PANELING, RIGHT
290
PLASTIC NUT. NUT
300
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
310
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
