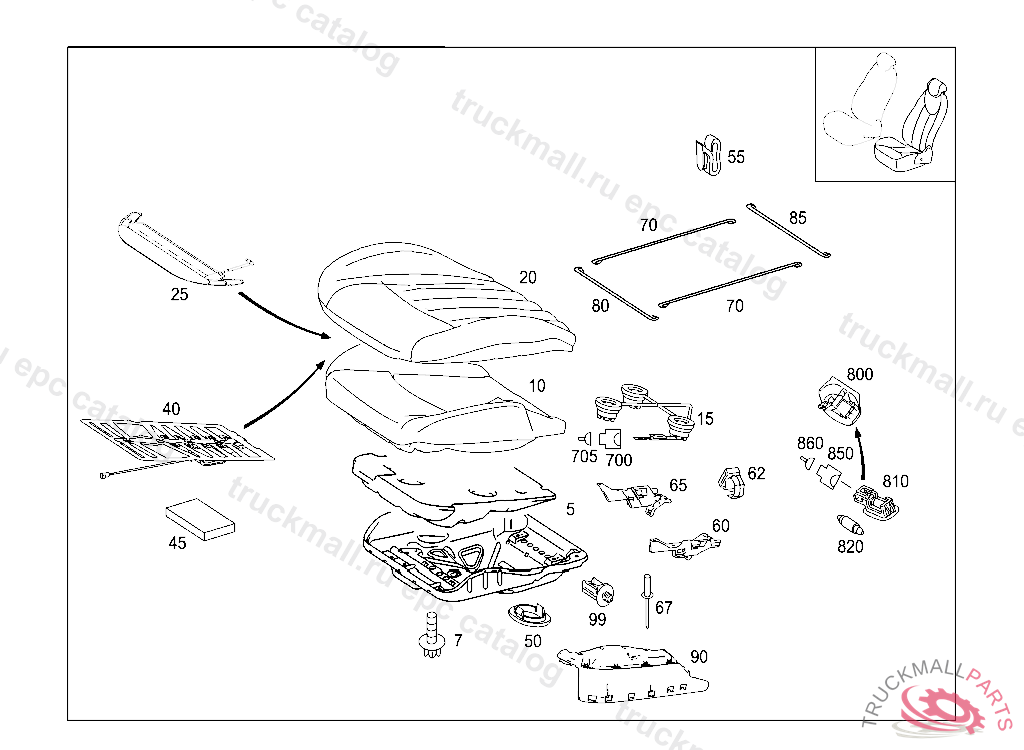

Поз.
Артикул
Описание
5
CUSHION FRAME , E 01938720050630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
7
HEXALOBULAR BOLT ON BOW,LEFT M6X12, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
10
REST AMG LEATH., CONDOR LEATH./AMG EXCLUSIV
10
REST LEFT
10
REST CONVENIENCE SEAT, LEFT
10
REST AMG LEATH., CONDOR LEATH./AMG EXCLUSIV
15
ELECTRIC MOTOR SEAT VENTILATION, RIGHT SEAT
20
COVER LEATHER ON FRONT COMFORT SEAT
20
COVER LEATHER
20
COVER LEATHER WITH SEAT HEATING
20
COVER ONE COLORED LEATHER TRIM,SEAT HEATER
20
COVER LEATHER
20
COVER ONE COLORED LEATHER TRIM,SEAT HEATER
20
COVER FABRIC WITH SEAT HEATING, 9D94 001A QFT219A2005 BLACK
20
COVER LEATHER ON FRONT COMFORT SEAT
20
COVER FABRIC WITH SEAT HEATING, 9D94 001A QFT219A2005 BLACK
20
COVER ONE COLORED LEATHER TRIM,SEAT AIR CONDITIONING,SEAT HEATER
20
COVER LEATHER WITH HEATED SEATS AND LUXURY
20
COVER ONE COLORED LEATHER TRIM,SEAT AIR CONDITIONING,SEAT HEATER
20
COVER LEATHER WITH SEAT HEATING
20
COVER "NAPPA" LEATHER
20
COVER LEATHER AMG
20
COVER LEATHER AMG
25
SEAT ADAPTER LEFT FRONT SEAT
40
SENSOR MAT SEAT OCCUPATION RECOGNITION, A 00684620041029805
40
SWITCH SEAT OCCUPATION RECOGNITION, A 10461520070112807
40
SWITCH SEAT OCCUPATION RECOGNITION
40
SENSOR MAT SEAT OCCUPATION RECOGNITION, Replaced By: A2198200810
40
SWITCH SEAT OCCUPATION RECOGNITION BOSCH, A 03833220050630806, Replaced By: A2198700410
45
PAD TO CONTROL UNIT
55
CLIP
60
LEDGE ON CUSHION FRAME, LEFT
62
CLIP AT CUSHION FRAME
65
LEDGE ON CUSHION FRAME, RIGHT
67
RIVET
70
BRACKET
80
CLAMP LEFT LONGITUDINAL STAPLE 330MM
85
CLAMP LEFT LONGITUDINAL STAPLE 330MM
90
COVER LATERAL OUTSIDE LEFT
99
LINE HOLDER FOR HOSE TO BODY
700
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
700
SOCKET HOUSING RIGHT REAR OUTER SURROUND SPEAKER 2-PIN MQS,H4/57
705
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
800
BRACKET AT CUSHION FRAME
810
INTERIOR LAMP DRIVER AND FRONT PASSENGER FOOTWELL LAMP, J 62572220080525809
820
BULB LICENSE PLATE LAMP 12V-5W
850
PLUG HOUSING FRONT PASSENGER FOOTWELL ILL. 2-PIN MCP2.8
860
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
