Поз.
Артикул
Описание
10

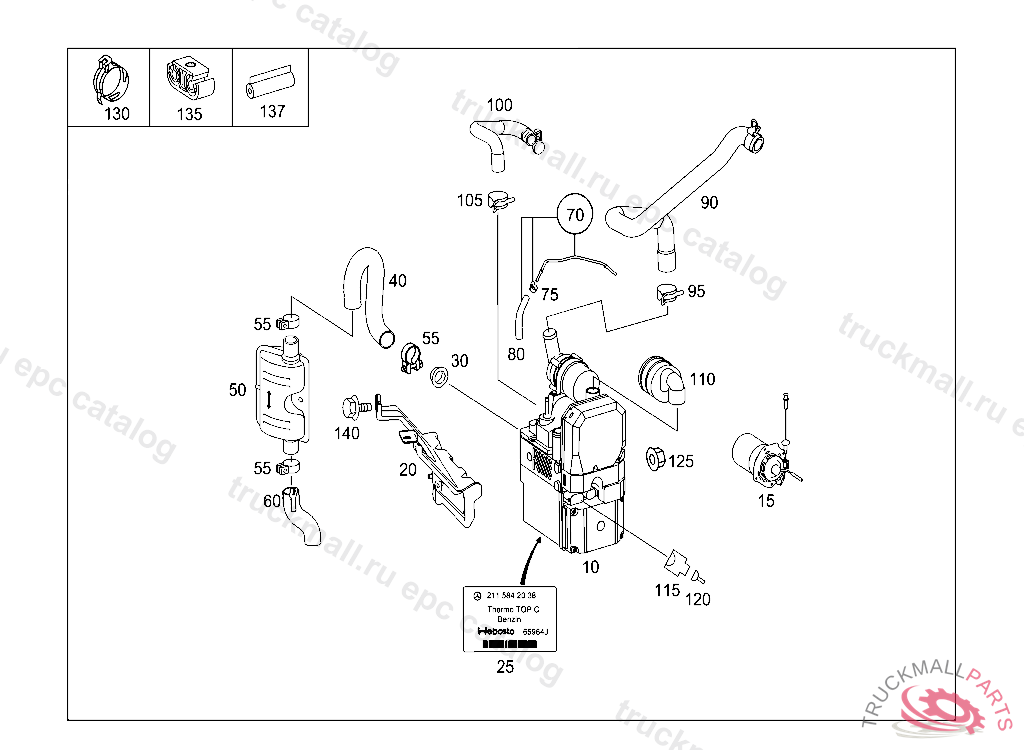

HEATING UNIT GASOLINE VEHICLES
10
HEATER GASOLINE VEHICLES, Replaced By: A2115004198
15
BURNER INSET HEATING
20
BRACKET HEATER UNIT
25
STICKER AT HEATER
30
GASKET
40
FRONT EXHAUST PIPE MUFFLER
50
MUFFLER EXHAUST MUFFLER
55
CLAMP EXHAUST PIPE
60
END PIECE MUFFLER
70
FUEL HOSE ON FUEL TUBE
75
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
80
FUEL HOSE FROM TANK TO PUMP
90
HOSE FROM HEATER UNIT TO WATER PUMP
95
HOSE CLAMP HOSE ATTACHMENT 27 MM
100
HOSE FROM HEATER UNIT TO VALVE
105
HOSE CLAMP HOSE ATTACHMENT 27 MM
110
HOSE (AIR INTAKE HOSE)
115
RECEPTACLE HOUSING. PLUG SOCKET INDEPENDENT HEATING
115
PIN BUSHING HOUSING 6-POLE
120
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
120
GASKET. BLIND PLUG BLUE
120
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
120
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
120
STOP PLUG. PLUG
120
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
120
GASKET YELLOW 0.2-0.5MM2,126373
125
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
125
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
125
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
130
CLAMP25 MM
135
LINE HOLDER FRONT RIGHT BRAKE LINE MOUNTING TO RIGHT LONGITUDINAL MEMBER 3,2/4,7-6MM
137
HOSE
140
HEXALOBULAR BOLT. SCREW
140
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
