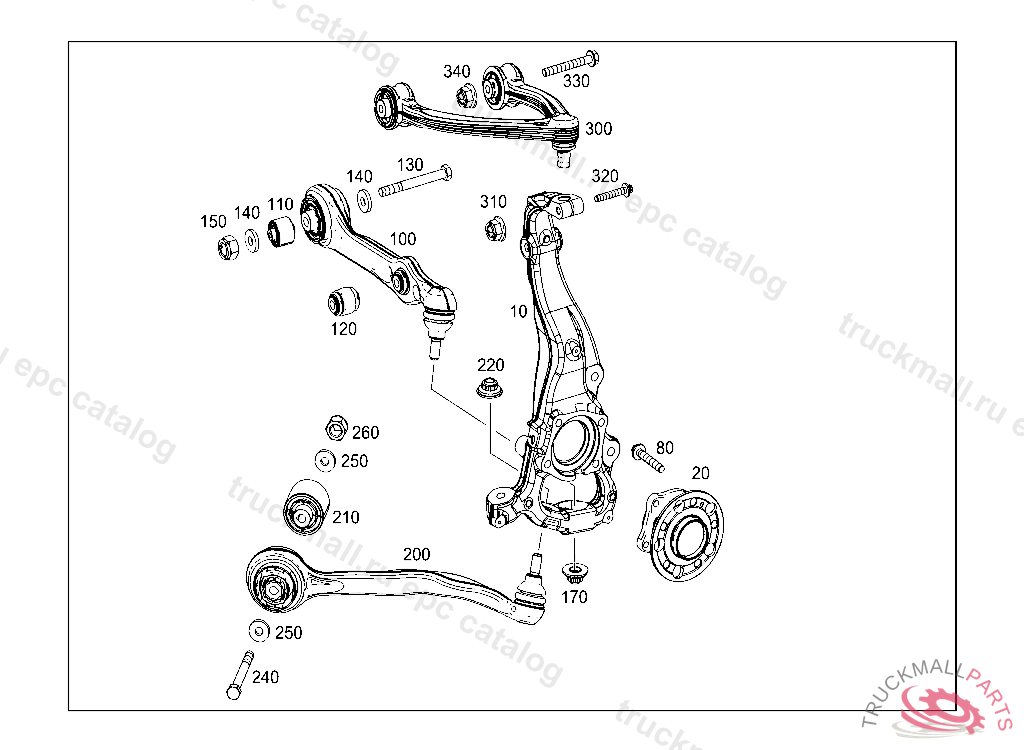

Поз.
Артикул
Описание
10
STEERING KNUCKLE LEFT
10
STEERING KNUCKLE RIGHT
20
WHEEL BEARING FRONT LEFT
80
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
80
HEXALOBULAR BOLT TO LEFT STEERING KNUCKLE, FRONT AXLE
100
SPRING LINK LEFT
100
SPRING LINK LEFT
100
SPRING LINK RIGHT
100
SPRING LINK RIGHT
110
METAL BEARING ELEMENT RIGHT, NOT FOR AMG VEHICLES
110
METAL BEARING ELEMENT RIGHT
120
JOINT SPRING CONTROL ARM TO WHEEL BEARING
120
SUPPORTING JOINT LEFT
130
HEXAGON HEAD BOLT LOWER CONTROL ARM TO FRAME M14X1,5X130
140
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
150
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
170
BIHEXAGONAL NUT TORQUE STRUT AT STEERING KNUCKLE, RIGHT M16
200
STRUT ROD LEFT
200
STRUT ROD RIGHT
220
BIHEXAGONAL NUT TORQUE STRUT AT STEERING KNUCKLE, RIGHT M16
240
HEXAGON HEAD BOLT LOWER CONTROL ARM TO FRAME M14X1,5X130
250
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
260
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
300
CONTROL ARM TOP RIGHT
300
CONTROL ARM TOP LEFT
310
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
320
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
330
HEXAGON HEAD BOLT TRANSVERSE CONTROL ARM LEFT TO BODY M12X1,5X95
340
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
