Mercedes A0019845829 - Болт

S350 CDI 222.123

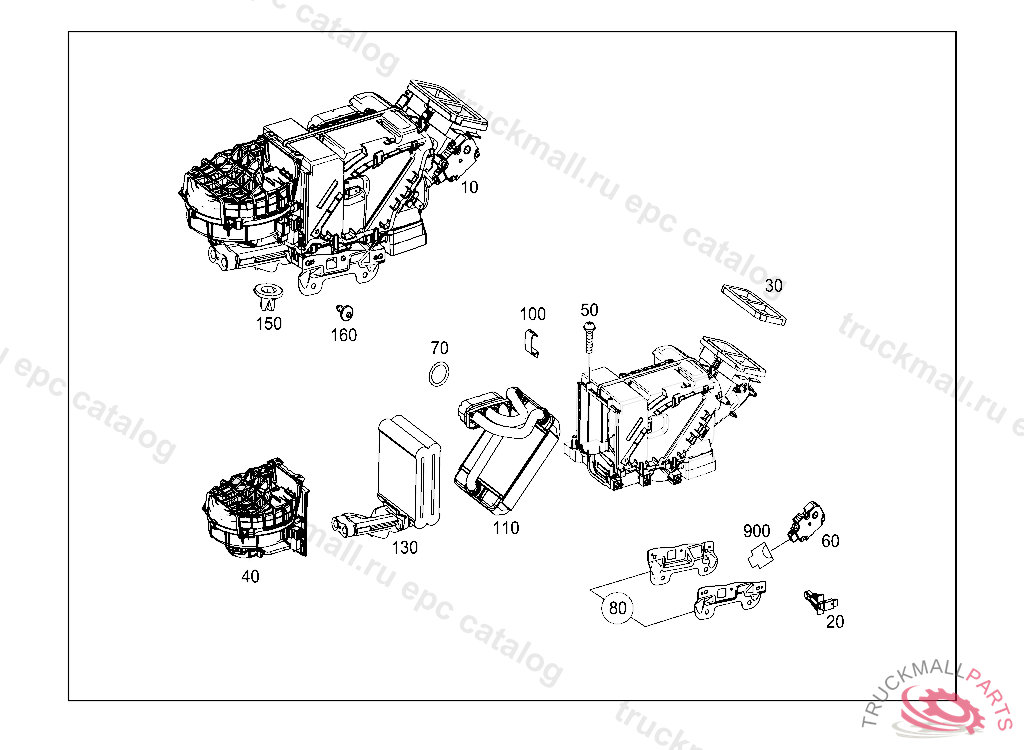

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 058 CONTROL UNITS,FUSE BOXES AND RELAYS IN INTERIOR IL. 1

Поз.
Артикул
Описание
10
A2228305060
EVAPORATOR HOUSING IN THE REAR
20
A2218300972
TEMPERATURE SENSOR AIR CONDITIONER IN THE REAR
30
A2228350398
SEALING FRAME AIR CONDITIONER CASE
40
A2228200314
BLOWER HOUSING
50
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
60
A2219062500
STEPPER MOTOR AIR BAFFLE, A 02436320090914
70
A0309972048
SEAL RING
80
A2228350114
TS BRACKET
100
A0008353134
SPRING
110
A2218300261
HEAT EXCHANGER
130
A2228307301
EVAPORATOR
150
A0099976781
GROMMET CONDENSED WATER DRAIN
160
N000000001475
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
900
A0055402781
CONNECTOR HOUSING ACTUATOR MOTOR AIR DUCT AT REAR BOTTOM, LEFT AND RIGHT 4-PIN MQS,M16/33, M16/34
