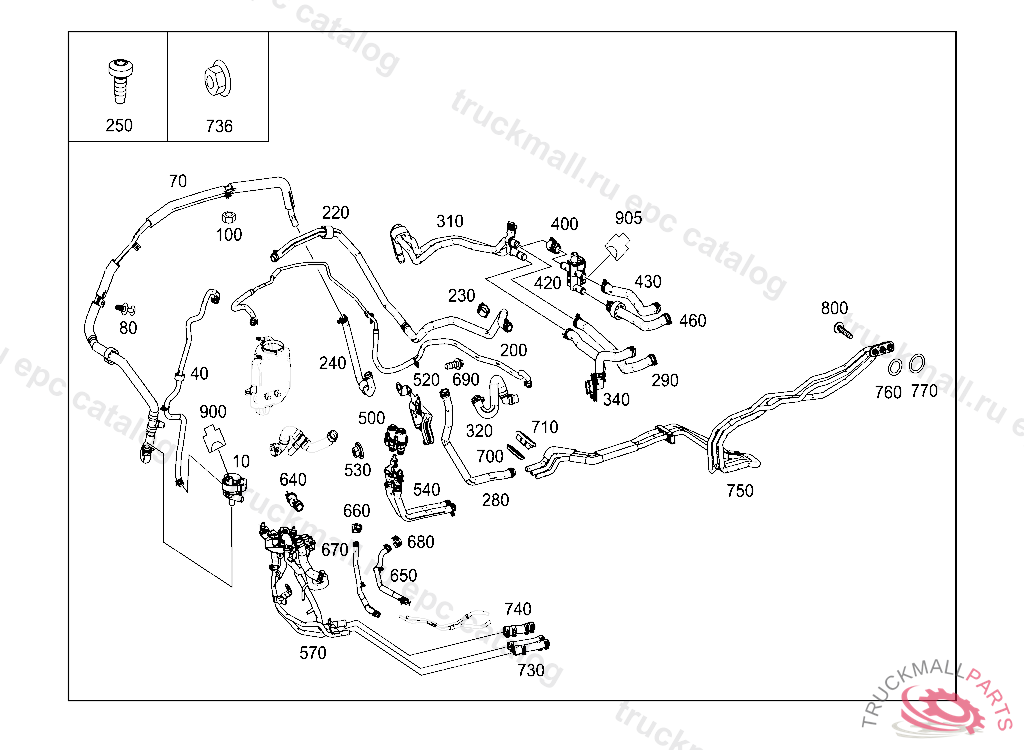

Поз.
Артикул
Описание
10
CIRCULATION PUMP , A 06254720120629
10
CIRCULATION PUMP
40
HOSE ASSEMBLY RECIRCULATION, WINDOW WASHER HEATING
70
PIPELINE RETURN
80
RIVET BUSHING AND LEVER TO CAB
100
NUT , Replaced By: N913023006001
200
HOSE ASSEMBLY FEED, PANE WASHER WATER HEATING
200
HOSE ASSEMBLY FEED, PANE WASHER WATER HEATING
220
HOSE ASSEMBLY RETURN
220
PIPING GROUP RETURN
230
LINE FASTENER RETURN LINE FASTENING
240
HOSE ASSEMBLY RETURN
240
HOSE ASSEMBLY RETURN
250
SCREW BRACKET TO COVERING
280
HOSE ASSEMBLY RETURN
280
HOSE ASSEMBLY RETURN
290
HOSE ASSEMBLY RETURN
310
PIPING GROUP RETURN
320
HOSE ASSEMBLY FEED
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED LINE,BETWEEN ENGINE AND VALVE
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED LINE,BETWEEN ENGINE AND VALVE
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
340
HOSE ASSEMBLY FEED TO HEAT EXCHANGER
400
HOSE ASSEMBLY RETURN
420
VALVE CHANGE-OVER VALVE
430
HOSE ASSEMBLY INLET, FROM VALVE TO HEAT EXCHANGER
460
HOSE ASSEMBLY RETURN, FROM HEAT EXCHANGER TO VALVE
500
SOLENOID VALVE CHANGE-OVER VALVE
520
BRACKET MOUNT CHANGE-OVER VALVE
530
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
540
HOSE ASSEMBLY RETURN
570
HOSE ASSEMBLY RETURN
640
HOSE ASSEMBLY
650
HOSE ASSEMBLY
660
HOSE CLAMP FEED TO ENGINE 16/12 MM
670
HOSE ASSEMBLY
680
HOSE CLAMP FEED TO ENGINE 16/12 MM
690
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
700
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
710
FEED-THROUGH GROMMET
730
HOSE ASSEMBLY RETURN
736
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
740
HOSE ASSEMBLY
750
PIPELINE AIR CONDITIONER IN THE REAR
760
O-RING PIPE LINE 12,3X2,4
770
O-RING PIPE LINE 15,3X2,4
800
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
905
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
