Поз.
Артикул
Описание

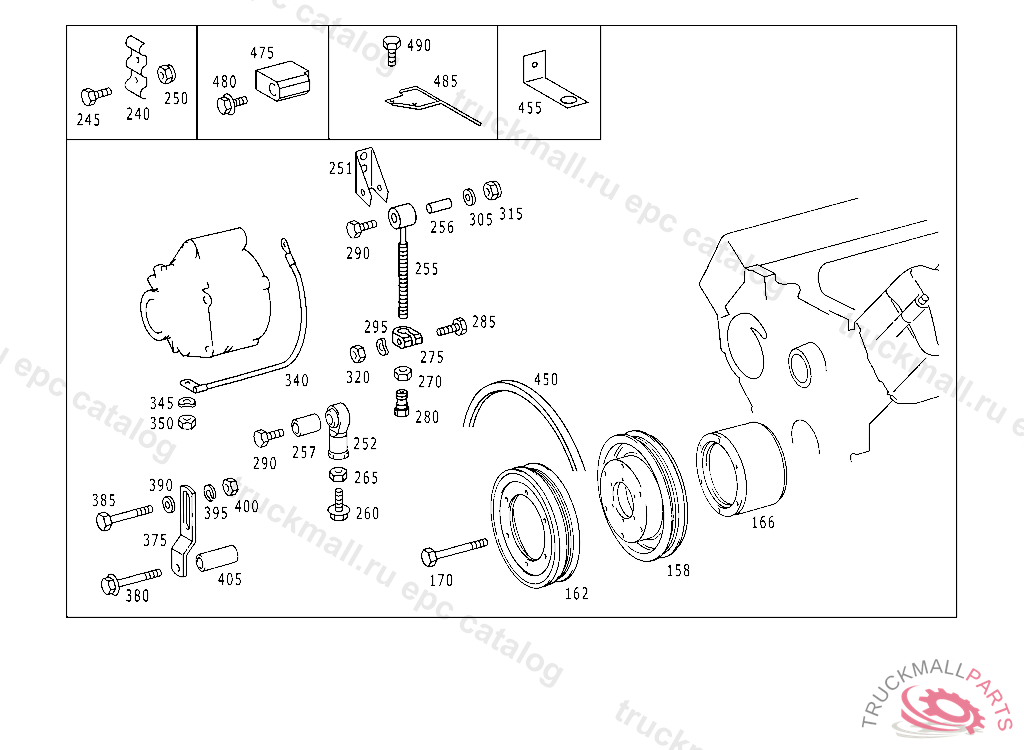

158
PULLEY CRANKSHAFT
162
PULLEY CRANKSHAFT,FRONT
166
INTERMEDIATE PIECE PULLEY
170
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
240
CLAMP FUEL LINE, 741959
240
CLAMP FUEL LINE TO SUPPORT
245
SCREW VIBRATION ABSORBER TO BRACKET M 12X1.5X85
245
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
245
SCREW , Replaced By: N000000001479
245
SCREW CONSOLE TO CROSS MEMBER
250
NUT
251
BRACKET CLAMPING BOLT
251
BRACKET ALTERNATOR, FROM ENGINE 357744 YEAR OF MANUFACTURE 1994
252
ROD END
255
CLAMPING BOLT , Replaced By: A4211500072
255
CLAMPING BOLT , Replaced By: A3551500372
255
CLAMPING BOLT
255
CLAMPING BOLT (CLAMPING BOLT)
255
CLAMPING BOLT FOR V-BELT TENSIONING
255
CLAMPING BOLT (CLAMPING BOLT)
255
THREADED UNION (CLAMPING BOLT)
255
CLAMPING BOLT (CLAMPING BOLT)
255
CLAMPING BOLT (CLAMPING BOLT)
255
CLAMPING BOLT (CLAMPING BOLT)
256
BUSHINGTO 355 150 03 72,366 150 13 72
256
BUSHING
256
BUSHING
256
BUSHING CLAMPING BOLT TO ALTERNATOR
257
BUSHING
260
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
260
SCREW CLAMPING PIECE TO GENERATOR
265
NUT ANGLE TO FRAME
270
NUT ANGLE TO FRAME
275
CLAMPING PIECE TIGHTENER PULLEY
275
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
275
CONNECTOR CLAMPING BOLT TO ALTERNATOR
275
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
280
NUT TIGHTENER PULLEY TO LEVER
280
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
280
NUT TENSIONING SCREW ON FIRST GENERATOR
280
NUT CLAMPING BOLT TO ALTERNATOR
285
SCREW BRACKET TO FRAME
285
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
285
SCREW LEFT AND RIGHT CONSOLES TO CAB
285
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
285
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
285
SCREW CLAMPING BOLT TO ALTERNATOR
285
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
285
SCREW , Replaced By: N910105010017
285
SCREW. HEXAGON HEAD BOLT SPARE WHEEL M12X30
285
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
285
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
285
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1,5X60
285
SCREW BRACKET TO FRAME
285
HEXAGON HEAD BOLT. SCREW CLAMPING BOLT TO ALTERNATOR M 12X50
290
SCREW , Replaced By: A0019909404
290
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
290
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
290
SCREW BRACKET TO FRAME SIDE MEMBER
290
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
290
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
290
SCREW GROUND CABLE TO BRACKET M 10X70
290
SCREW SHIFTING ROD TO SHIFT LEVER
290
SCREW PLATE TO FRAME M 10X45
290
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
290
HEXAGON HEAD BOLT TRAY AT TRANSMISSION M12X45
290
HEXAGON HEAD BOLT. SCREW LEVER TO RELEASE SHAFT
295
WASHER
295
SPRING WASHER CAB FLOOR
295
WASHER BRACKET TO FRAME
295
WASHER CLAMPING BOLT TO OIL PAN
295
WASHER , Replaced By: N000125013008
305
WASHER CLAMPING BOLT TO OIL PAN
305
WASHER RADIATOR TO RUBBER MOUNTING
305
WASHER
305
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
315
NUT ANGLE TO FRAME
315
NUT TRAILER COUPLING TO REAR CROSS MEMBER
315
NUT
315
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
320
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
320
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
320
NUT BRACKET TO FRAME
320
NUT TIGHTENER PULLEY TO LEVER
320
NUT BRACKET TO SIDE MEMBER M12X1.5
320
NUT BRACKET TO SIDE MEMBER
340
GROUND CABLE , Replaced By: A4031500832
340
GROUND CABLE GENERATOR TO ENGINE SUPPORT
340
GROUND CABLE , Replaced By: A4031500732
340
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
345
WASHER , Replaced By: N000433005304
345
SPRING WASHER ALTERNATOR CONNECTION D+
345
WASHER COVER TO ALTERNATOR
350
NUT , Replaced By: N304032005005
350
NUT IN CASE OF SUBSEQUENT INSTALLATION
375
BRACKET CLAMPING BOLT TO BRACKET AND TO ALTERNATOR
380
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
385
SCREW SHIFTING ROD TO SHIFT LEVER
390
WASHER STRUT TO CROSS MEMBER
395
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
400
NUT BATTERY CABLE
405
SPACER TUBE CLAMPING SHACKLE TO CYLINDER CRANKCASE
450
V-BELT SET2 PIECES 12.5X1400, UP TO CHASSIS D 164887 EXCEPT FOR:D 162653,D 162907,D 163135,D 163292,D 164695.
450
V-BELT WATER PUMP DRIVE, 075354 401-403,441-443 782803 444 16163
450
V-BELT
450
V-BELT SET2 PIECES
450
V-BELT12,5X900
450
V-BELT
450
V-BELT12X1575 MM
450
V-BELT ,5 345185
455
BRACKET COOLING WATER LINE TO ENGINE
475
BRACKET CLAMPING BOLT TO BRACKET
480
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
485
COVER PLATE
490
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
999
SCREENING PLATE
999
PIN
999
RING
999
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
999
GROMMET5.0 MM
999
PULLEY
999
EXPANSION PLUG
999
GASKET
999
SUPPORT ALTERNATOR
999
SUPPORT ALTERNATOR
999
SUPPORT TO CRANKCASE BOTTOM, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SUPPORT TO CRANKCASE TOP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SUPPORT BOTTOM, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SUPPORT ALTERNATOR
999
BRACKET AT OIL PAN, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
BRACKET TO CRANKCASE TOP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
GROUND STRAP FROM ALTERNATOR TO SUPPORT, UP TO ENGINE 339525 YEAR OF MANUFACTURE 1994 FROM ENGINE 339526,SEE CHASSIS MICROFICHE
999
WASHER SWITCH TO FIRE WALL
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
NUT , Replaced By: N913023006001
