Поз.
Артикул
Описание

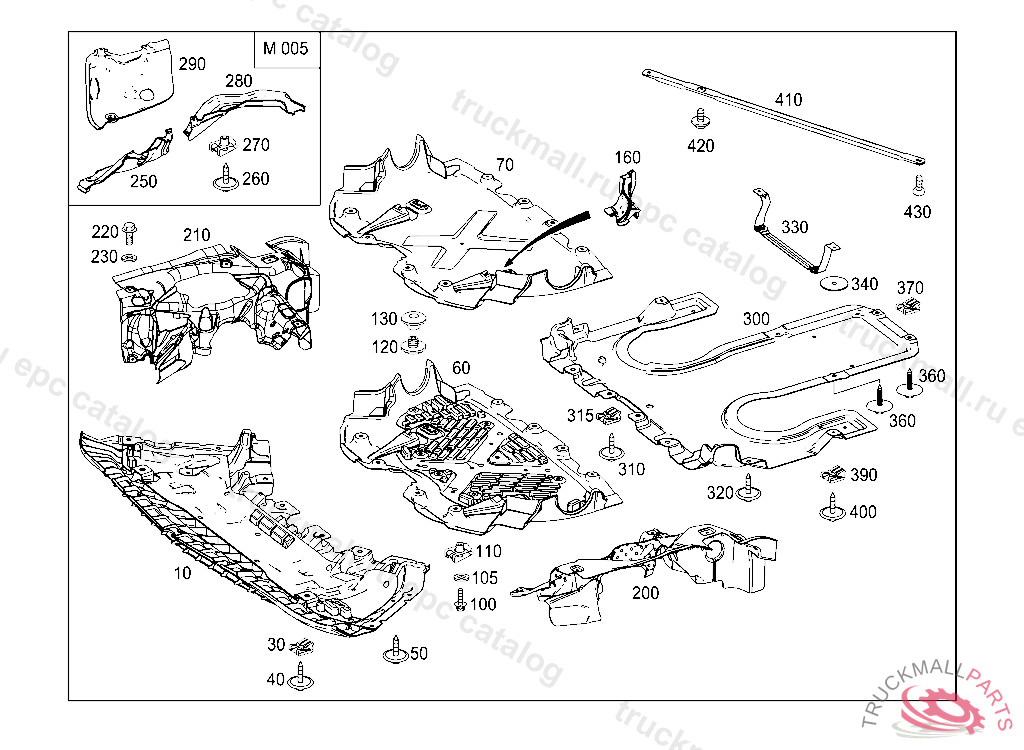

10
ENCAPSULATION FRONT
30
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
50
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
60
ENCAPSULATION CENTRAL
60
UNDERBODY PROTECTION CENTRAL
70
COVER F ENGINE COMP. BM ANTINOISE CAPSULE
100
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
100
SCREW BRACKET TO CROSS CONNECTION STRUT
105
WASHER BRACKET TO CAB REAR PANEL
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SPRING-THREAD NUT PROTECTIVE PLATE
110
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
200
ENCAPSULATION CENTRAL LEFT
200
ENCAPSULATION CENTRAL LEFT
210
ENCAPSULATION CENTRAL RIGHT
210
ENCAPSULATION CENTRAL RIGHT
220
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
220
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
250
AIR BAFFLE FRONT LEFT
280
AIR BAFFLE REAR LEFT
290
AIR BAFFLE RIGHT
300
COVER F ENGINE COMP. BM
310
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
315
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
320
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
330
BRACKET FASTENING, REAR COVER
340
NUT INSULATION AND BRACKET TO BODY
360
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
370
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
390
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
400
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
410
STRUT FRONT RIGHT
410
STRUT FRONT LEFT
420
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
430
BOLT STRUT TO FRAME-TYPE INTEGRAL SUPPORT
