SL 280 / SL 300
230.454
32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM

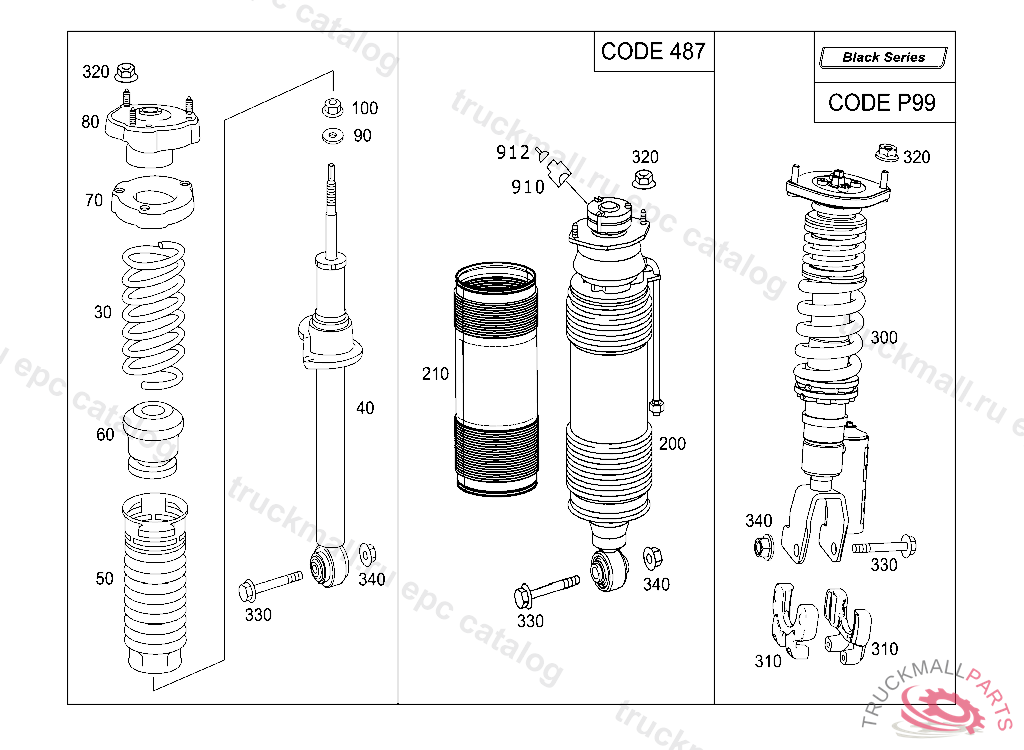

154 SPRING STRUT AND SPRING STRUT MOUNTING REAR

SL 280 / SL 300 - 230.454 - 32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM

Поз.
Артикул
Описание
30
A2303240204
REAR SPRING REAR
40
A2303260900
SHOCK ABSORBER REAR, OBSERVE WIS
50
A2303230092
BOOT
60
A2303260068
RUBBER BUMPER
70
A2303250084
SHIM
80
A2303260064
STEP-BEARING
90
N000000003386
WASHER P.T.O. TO TRANSMISSION
100
N910113010002
HEXAGON NUT
100
N910113010003
NUT REINFORCEMENT TO BRACKET
200
A2303204238
HYDROPNEUMATIC SPRING LEG REAR RIGHT
200
A2303200438
HYDROPNEUMATIC SPRING LEG REAR RIGHT, F 16148020091125, Replaced By: A2303204638
200
A2303200338
HYDROPNEUMATIC SPRING LEG REAR LEFT, F 16148120091125
200
A2303204138
HYDROPNEUMATIC SPRING LEG REAR LEFT
200
A2303204538
HYDROPNEUMATIC SPRING LEG REAR LEFT, F 16148020091125
200
A2303204638
HYDROPNEUMATIC SPRING LEG REAR RIGHT, F 16148020091125
210
A2303280092
ELASTOMERIC CUP REAR LEFT
300
A2303203338
HYDROPNEUMATIC SPRING LEG REAR LEFT
300
A2303203438
HYDROPNEUMATIC SPRING LEG REAR RIGHT
310
A2303201330
SHOCK ABSORBER PROTECTION AGAINST TORSION
320
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
320
N000000005304
NUT SPRING STRUT TO BODY M8, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N913023008002
330
N910105014017
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
330
N000000005290
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M14X1.5X90
330
N910105014016
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
340
N000000003277
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
340
A0029903554
NUT SUSPENSION STRUT TO STEERING KNUCKLE M14X1,5
340
N000000005307
NUT SUSPENSION STRUT TO SUPPORTING JOINT M14X1.5-10, A 13829320080301
910
A2105402181
CLUTCH. PIN BUSHING HOUSING SIREN
912
A0085456326
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
