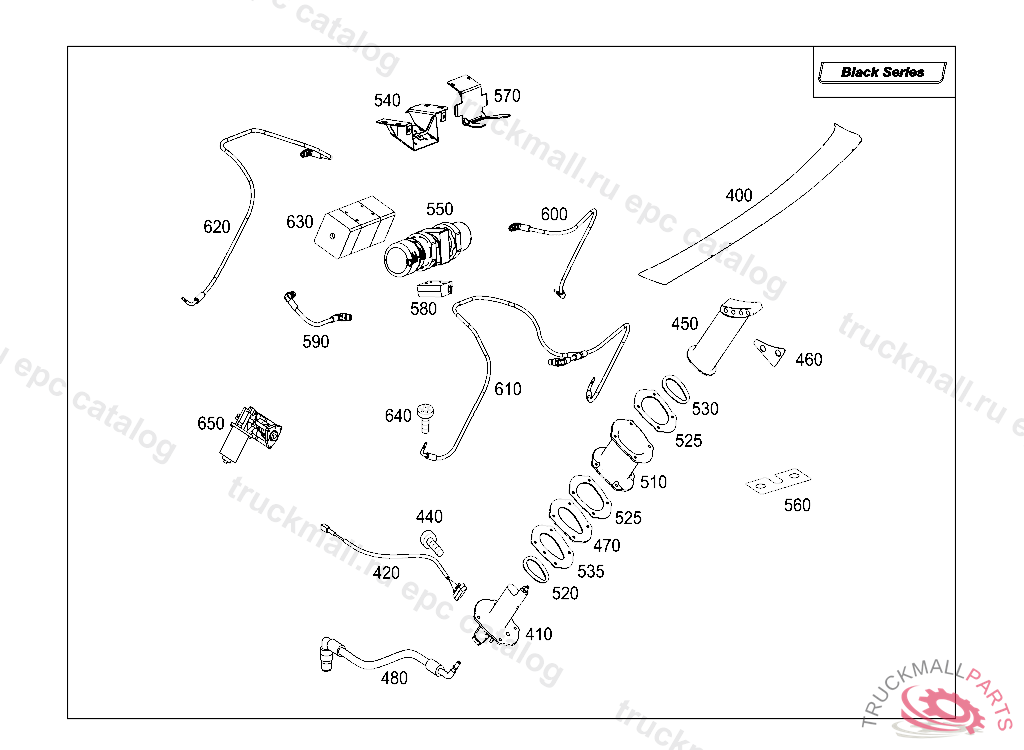

Поз.
Артикул
Описание
400
SPOILER , 9999QFT230L9000 COLORLESS
410
REAR SPOILER ATTACHMENT LEFT AND RIGHT
420
OIL-BREAK SWITCH TOP
420
OIL-BREAK SWITCH BOTTOM
440
HEXALOBULAR BOLT MOUNTING,ROTARY BUTTON M3X6
450
BASE RIGHT, 9999QFT230L9000 COLORLESS
450
BASE LEFT, 9999QFT230L9000 COLORLESS
460
PLATE SPOILER FASTENING
470
SUPPORT RING2 MM
470
SUPPORT RING3 MM
470
SUPPORT RING1 MM
470
SUPPORT RING AT CYLINDER
480
LINE FEED
510
TAKE-UP DEVICE CYLINDER
520
SEAL RIGHT
520
SEAL LEFT
525
SEALING SPOILER SPOILER
530
SEAL SPOILER
535
SEALING SPOILER SPOILER
540
TAKE-UP DEVICE PUMP
550
HYDRAULIC ACTUATOR HYDRAULIC UNIT
560
BRACKET HYDRAULIC LINE
570
FIXTURE PUMP
580
DISTRIBUTOR BLOCK HYDRAULIC UNIT
590
HYDRAULIC LINE AT DISTRIBUTOR
600
LINE FEED
610
LINE RETURN
620
LINE FEED
630
HYDRAULIC ACTUATOR HYDRAULIC UNIT
640
HEXALOBULAR BOLT MOUNTING,ROTARY BUTTON M3X6
650
SERVOMOTOR
