Поз.
Артикул
Описание

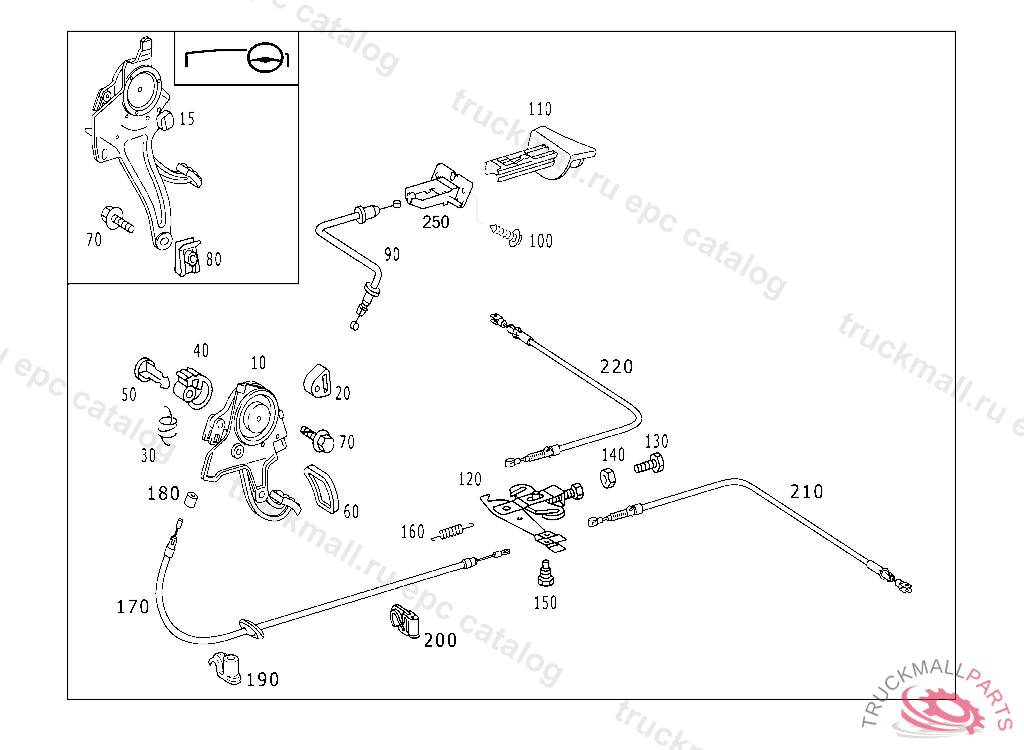

10
PARKING BRAKE
15
PARKING BRAKE
20
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
30
SPRING , FROM MODEL YEAR'96
40
DETENT , FROM MODEL YEAR'96
40
DETENT GREY, COMPARE NEW PART WITH REMOVED PART
50
PIN , FROM MODEL YEAR'96
60
PAD FOOT OPERATED PARKING BRAKE
70
SCREW DOOR CHECK TO BODY M8 X 20
80
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
90
BRAKE CABLE PAWL RELEASE
90
BRAKE CABLE RELEASE CABLE
100
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
110
HANDLE RELEASE HANDLE
110
HANDLE RELEASE HANDLE
120
SHACKLE BRAKE READJUSTMENT
130
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
140
HEXAGON NUT
150
SCREW FRONT BRAKE CABLE TO BRAKE READJUSTMENT
160
SPRING
170
BRAKE CABLE ACTUATOR TO PIVOT ARM
170
BRAKE CABLE ACTUATOR TO PIVOT ARM
180
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
190
CLAMP
200
CLAMP FRONT BRAKE CABLE TO TUNNEL
210
BRAKE CABLE LEFT
220
BRAKE CABLE RIGHT
