Mercedes A2406400848 - Концевой элемент

MAYBACH 57 240.078

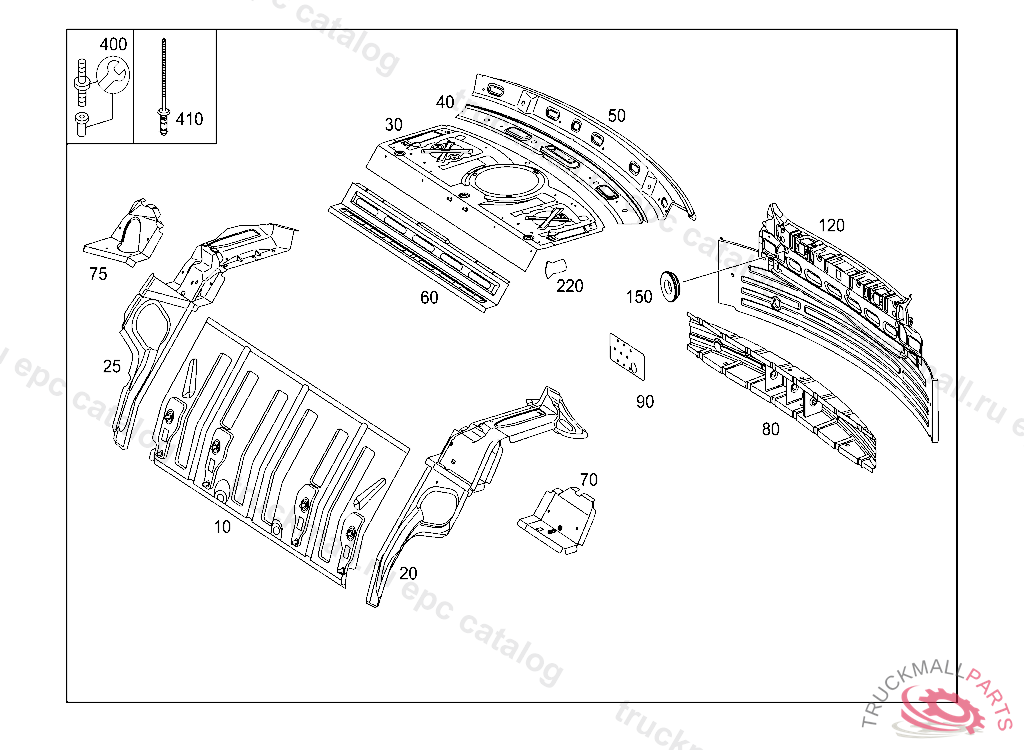

64 REAR END - 015 REAR END

Поз.
Артикул
Описание
10
A2406400260
REAR PANEL BOTTOM
20
A2406400748
END PIECE LEFT
25
A2406400848
END PIECE RIGHT
30
A2406400960
REAR PANEL TOP
40
A2406460001
CENTRAL PART TOP INSIDE
50
A2406400171
PANELLING TOP OUTER REAR-END CENTER ASSEMBLY
60
A2406400014
CROSS MEMBER REAR
70
A2406300322
END PIECE LEFT
75
A2406360222
END PIECE RIGHT
80
A2406102125
REINFORCEMENT CROSS MEMBER
90
A2406120825
REINFORCEMENT
120
A2406400371
PANELLING REAR BODY PANEL,BOTTOM OUTSIDE
150
A0009874944
EXPANSION PLUG THRU HOLE 20 MM
220
A2408310197
HOSE SIDE REAR FLOOR ASSEMBLY
400
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
410
A0009917632
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
