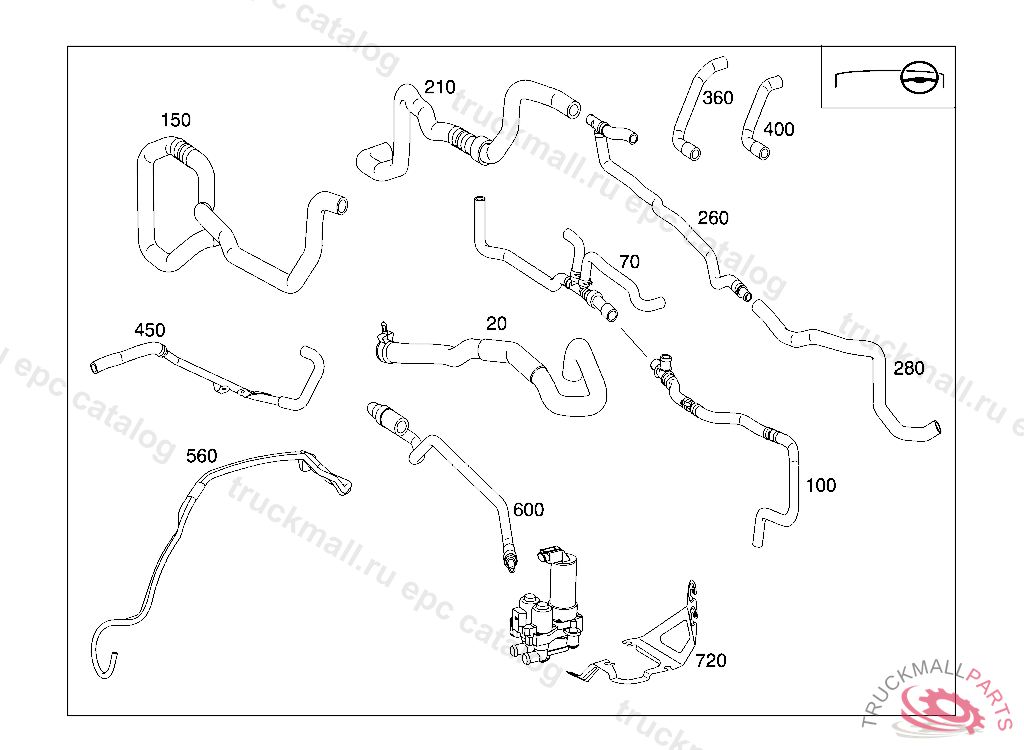

Поз.
Артикул
Описание
20
HOSE FEED TO ENGINE
70
HOSE FEED
100
HOSE REAR HEAT EXCHANGER SUPPLY
150
HOSE (3/2-WAY SOLENOID VALVE) STATIONARY HEATER
210
HOSE STATIONARY HEATER SUPPLY
260
HOSE RETURN FROM AUXILIARY HEATER
280
HOSE FROM TIMING VALVE TO RETURN PIPE
360
HOSE HEAT EXCHANGER RETURN LEFT FRONT
400
HOSE HEAT EXCHANGER RETURN RIGHT FRONT
450
HOSE RETURN, FROM HEAT EXCHANGER TO EXPANSION TANK
560
HOSE HEATED SCREEN WASH SYSTEM
600
HOSE HEATED SCREEN WASH SYSTEM
720
BRACKET TIMING VALVE
