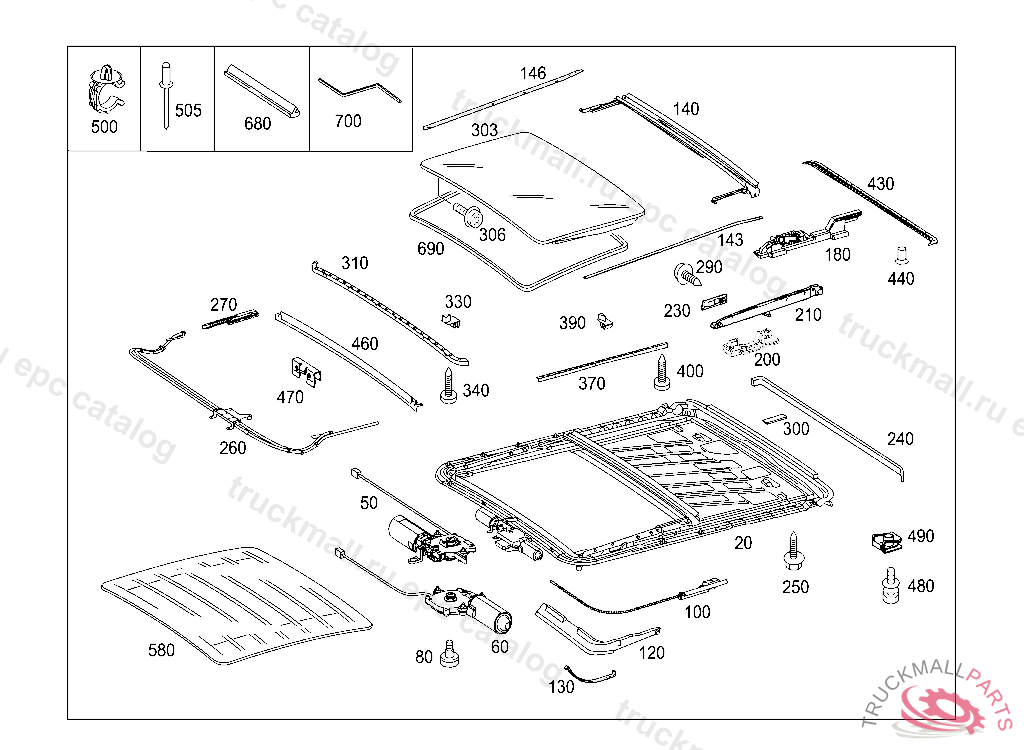

Поз.
Артикул
Описание
20
FRAME SLIDING ROOF FRONT, IS DELIVERED WITHOUT GLASS COVER AND ELECTRIC DRIVE
50
ELECTRIC MOTOR
80
SCREW MOTOR TO FRAME
100
CABLE RIGHT
100
CABLE LEFT
120
BAFFLE DRAFT DEFLECTOR
130
SPRING AT BOTTOM FRAME, FOR DEFLECTOR
140
RAIL (DRIP MOULDING)
143
RAIL WATER DRAIN,LEFT
146
RAIL TROUGH ON THE RIGHT
180
ANGLE LEFT
180
ANGLE RIGHT
200
GUIDE LEFT
200
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, RIGHT
210
GUIDE AT LIFTING ANGLE RIGHT
210
GUIDE AT LIFTING ANGLE LEFT
230
COVER LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
240
PAD AT FRAME, LEFT 12MM, TO BE ADAPTED DURING ASSEMBLY
240
PAD ON FRAME,RIGHT 25 MM
240
PAD ON FRAME,LEFT 25 MM
240
PAD AT FRAME,RIGHT 12MM, TO BE ADAPTED DURING ASSEMBLY
250
SCREW SELF-TAPPING,943 408671
290
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
300
INSULATION DRIP MOULDING 60X15 MM
303
COVER GLASS VERSION
306
BOLT FOR COVER M5X10
310
MOUNTING RAIL AT REINFORCEMENT FRAME
330
SPACER FRONT RAIL
340
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
370
MOUNTING RAIL RIGHT
370
MOUNTING RAIL LEFT
390
SPACER FRONT RAIL
400
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
430
RAIL REAR
440
BLIND RIVET ATTACHMENT,RAIL
460
COVER STRIP
470
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
480
SCREW-AND-WASHER ASSEMBLY FRAME TO REINFORCEMENT FRAME
480
COMBINATION BOLT FRAME TO ROOF RAILS
490
LOCK NUT. LOCK PANELLING TO BUMPER
500
LINE HOLDER WATER DRAIN
505
BLIND RIVET TAXIMETER TO ROOF RAIL 6.4X14
580
SLIDING ROOF MECHANISM SOLAR MODULE
680
PAD
690
SEAL ROOF OPENING
700
KEY EMERGENCY CONTROL
