Mercedes A2403270940 - ДЕРЖАТЕЛЬ

MAYBACH 62 240.178

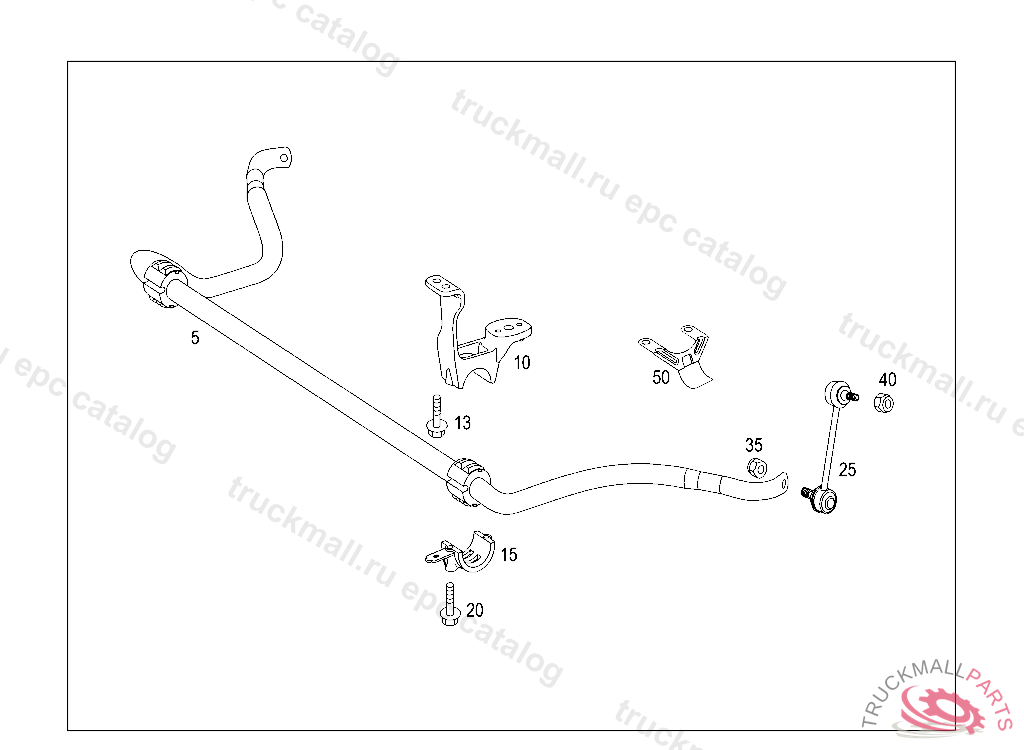

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 060 TORSION BAR,FRONT

Поз.
Артикул
Описание
5
A2403231665
TORSION BAR FRONT AXLE
5
A2403231865
TORSION BAR FRONT AXLE
10
A2403270940
BRACKET TORSION BAR TO LEFT LONGITUDINAL MEM.
10
A2403271040
BRACKET TORSION BAR TO RIGHT LONGITUDINAL MEM.
13
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
15
A2403230226
CLAMP TORSION BAR TO BRACKET
20
A0019908904
BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X55
25
A2403202089
ROD TORSION BAR TO STEERING KNUCKLE,RIGHT, A 00042020030605 P A 000199A 000346
25
A2403201289
ROD TORSION BAR TO STEERING KNUCKLE,LEFT, A 00041920030605MA 000199A 000346
35
N910113012003
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
35
N000000005295
HEXAGON NUT ROD TO TORSION BAR, A 00206520070405
40
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
50
A2403380040
BRACKET AT CLAMP
