Поз.
Артикул
Описание

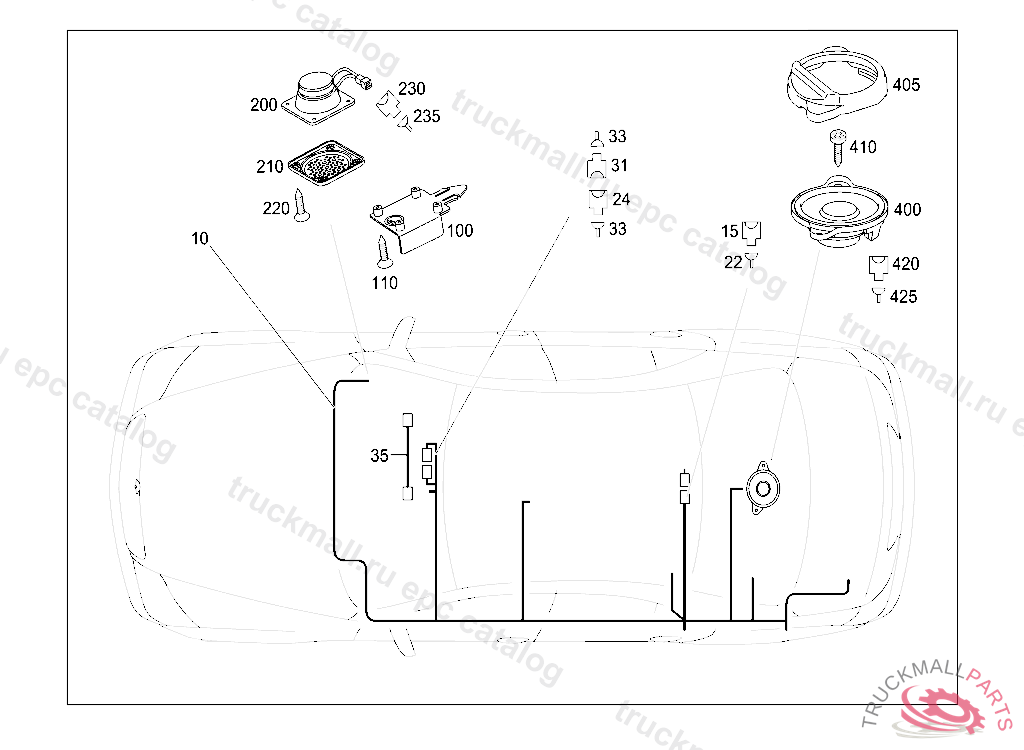

10
WIRING HARNESS INTERCOM SYSTEM
15
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
15
COVER. CAPTO 001 545 52 40
22
REP.SET CONTACT. CABLE HARNESS
24
COVER. CAPTO 001 545 52 40
24
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
31
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
33
REP.SET CONTACT. CABLE HARNESS
35
ELECTRICAL WIRING HARNESS ADAPTER MICROPHONE
100
BRACKET MICROPHONE
110
TAPPING SCREW3,5X16MM
200
LOUDSPEAKER CENTRAL CONSOLE REAR
210
COVER LOUDSPEAKER
220
TAPPING SCREW3,5X16MM
230
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
235
REP.SET CONTACT. CABLE HARNESS
400
LOUDSPEAKER CENTER FILL
405
SEAL LOUDSPEAKER
410
BOLT RIGHT END PIECE
420
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
425
REP.SET CONTACT. CABLE HARNESS
