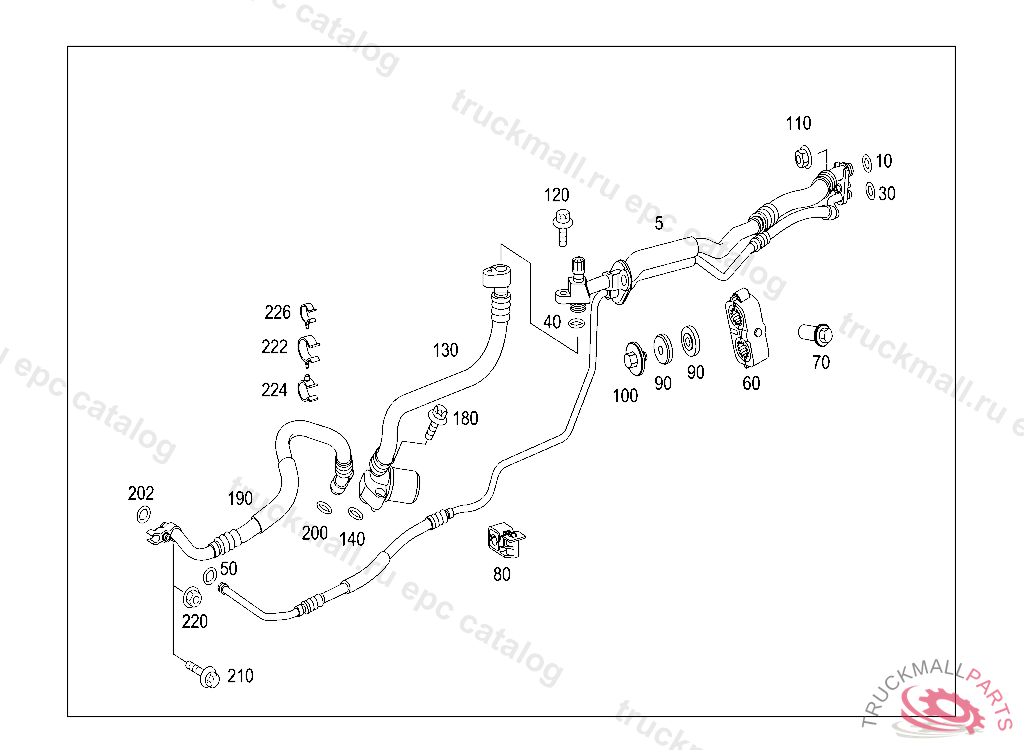

Поз.
Артикул
Описание
5
PIPELINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
5
PIPELINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
10
SEAL RING HOSE TO CONDENSER 14 MM
30
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
40
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
50
O-RING. SEAL RING9.5 X 2.5
60
CLAMP REFRIGERANT LINE TO BODY 10 MM + 16-19 MM BLACK
70
SCREW COLLAR PIPE LINE TO FLOOR
80
LINE HOLDER FUEL LINE MOUNTING
90
GROMMET AT SOLENOID VALVE,A 258245
100
FASTENER BUTTON FIRE WALL BRACING TO SUPPORT,F 241917
110
NUT , Replaced By: N913023006001
120
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
130
PIPELINE SEPARATION POINT TO COMPRESSOR
140
SEAL RING
180
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
190
PIPELINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
200
SEAL RING FROM LIQUID TANK TO T-FITTING
202
O-RING. SEAL RING9.5 X 2.5
210
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
220
NUT , Replaced By: N913023006001
222
CLAMP HOSE TO HOSE
224
CLAMP HOSE TO HOSE 20 MM
226
CLAMP6/14-15 MM
