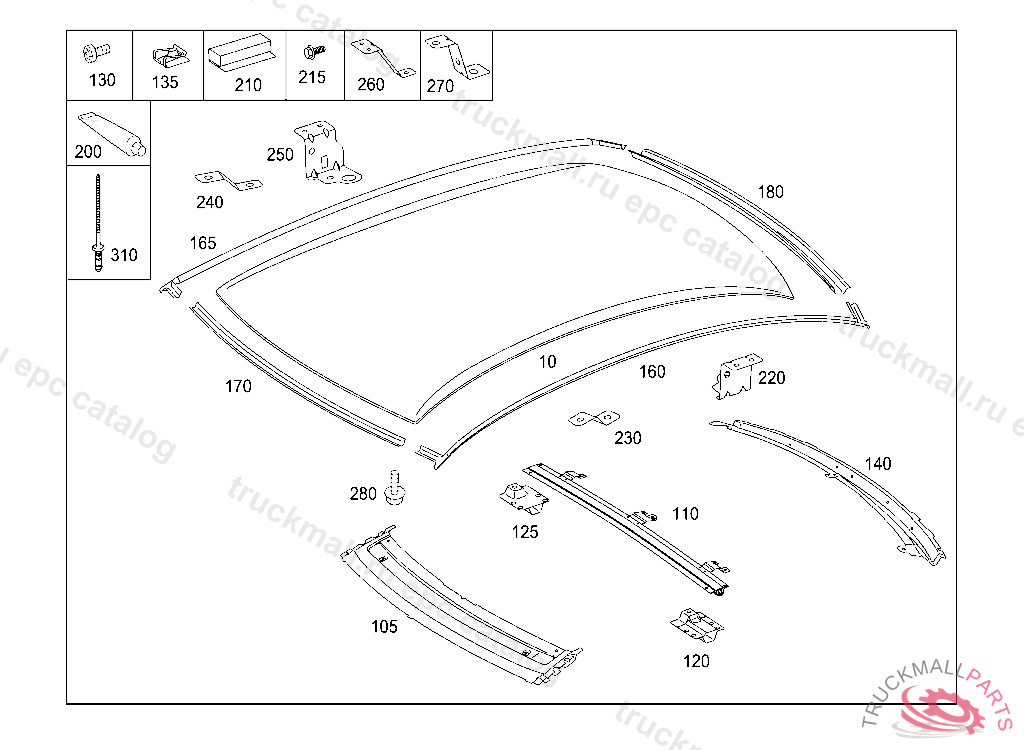

Mercedes A2406501201 - Каркас крыши

10

ROOF BOW

10

ROOF BOW

10

ROOF BOW

10

ROOF BOW

105

ROOF RAIL FRONT

110

ROOF RAIL CENTRAL

130

HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12

135

LOCK NUT. LOCK PANELLING TO BUMPER

160

SEAL LEFT

165

SEAL RIGHT

170

SEAL ROOF,FRONT

180

SEAL ROOF,REAR

200

REPAIR KIT

210

SPACER REAR WINDOW INSTALLATION 30 X 10 X 4 MM

215

HEXAGON HEAD BOLT FAN TO COUPLING FLANGE M6X12

215

HEXAGON HEAD BOLT

220

BRACKET INSIDE

250

BRACKET CENTRAL

260

BRACKET INSIDE

270

BRACKET

280

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

310

BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
