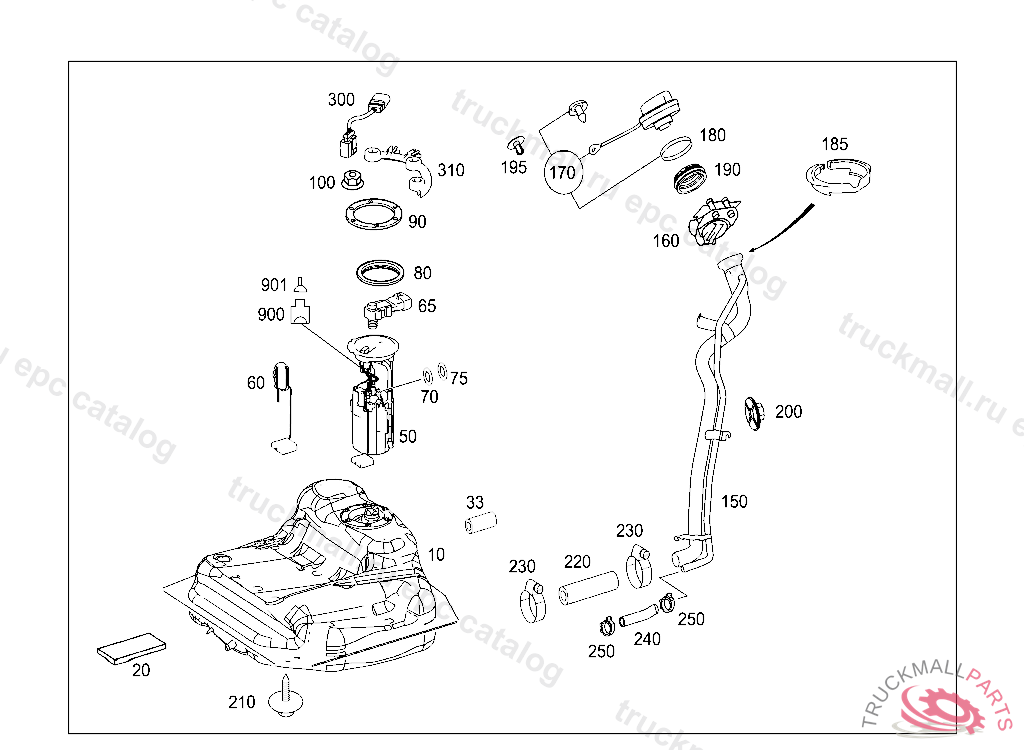

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
20
PAD FUEL TANK BOTTOM SIDE
50
DELIVERY UNIT , J 70049320081204
50
FUEL DELIVERY MODULE
50
DELIVERY UNIT , J 70049420081204
50
DELIVERY UNIT
60
SENDER UNIT
65
PRESSURE SENSOR
70
O-RING FEED LINE TO FUEL PUMP
75
O-RING FEED LINE
80
SEAL RING DELIVERY UNIT TO RESERVOIR
80
SEAL RING DELIVERY UNIT TO RESERVOIR
90
RING DELIVERY UNIT
100
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
150
FILLER NECK
150
FILLER NECK
160
FUNNEL , Replaced By: A1694700029
160
FILLER NECK
170
FILLER CAP , J 75730620090630
170
FILLER CAP
170
FUEL FILLER CAP , J 75730520090630 TO BE ADAPTED DURING ASSEMBLY
180
SEAL RING FILLER CAP
180
SEAL RING FILLER CAP TO FILLER NECK
190
GROMMET FILLER NECK TO FRAME
195
EXPANSION RIVET. RIVET
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SCREW DELIV.SPEC. FUEL TANK TO SUBSTRUCTURE
220
FUEL HOSE FROM FILLER NECK TO FUEL TANK
230
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
240
HOSE FUEL TANK VENTILATION
250
LOOM TIE ACTIVATED CHARCOAL FILTER TO SHUT-OFF VALVE, FROM MODEL YEAR '98
300
WIRING HARNESS PRESSURE SENDING UNIT, TANK
300
EL. CABLE FUEL PUMP CONNECTION
310
BRACKET CABLE HARNESS PLUG-CONNECTION
900
PIN BUSHING HOUSING. PLUG 4-POLE
901
FEMALE CONTACT RELAY SUPPORT 2.5-4.0 MM2 SLK2.8,K100
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
GASKET
901
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
