Поз.
Артикул
Описание

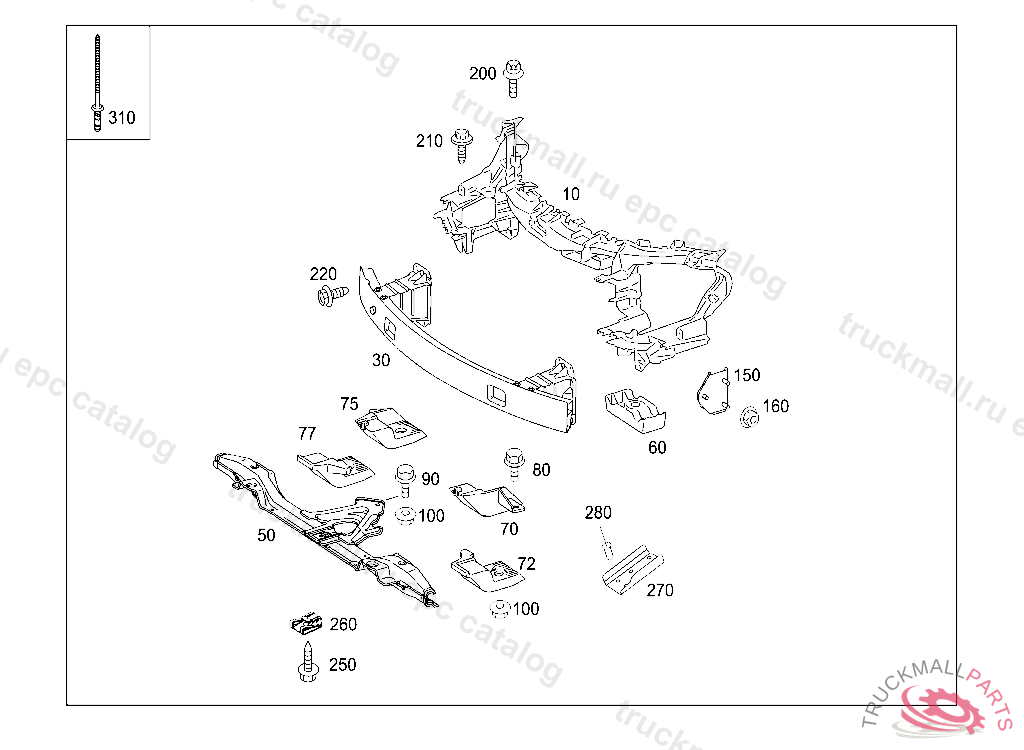

10
BEAM FRONT
30
BEAM BOTTOM, J 38482220080527809
30
SUPPORT BOTTOM, J 29712620070910808
30
BEAM BOTTOM, J 38482220080527809
30
SUPPORT BOTTOM, J 29712620070910808
50
STRUT FRONT
60
CONSOLE TAKE-UP DEVICE
70
BAFFLE LEFT
72
WATER DEFLECTOR LEFT
75
BAFFLE RIGHT
77
WATER DEFLECTOR RIGHT
80
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
90
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
100
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
150
CONSOLE LEFT
150
CONSOLE RIGHT
160
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
200
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
210
BOLT ON SIDE MEMBER FRONT TOP M8X24.5
220
BOLT ON SIDE MEMBER FRONT BOTTOM M8X22.5
250
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
260
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
310
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
