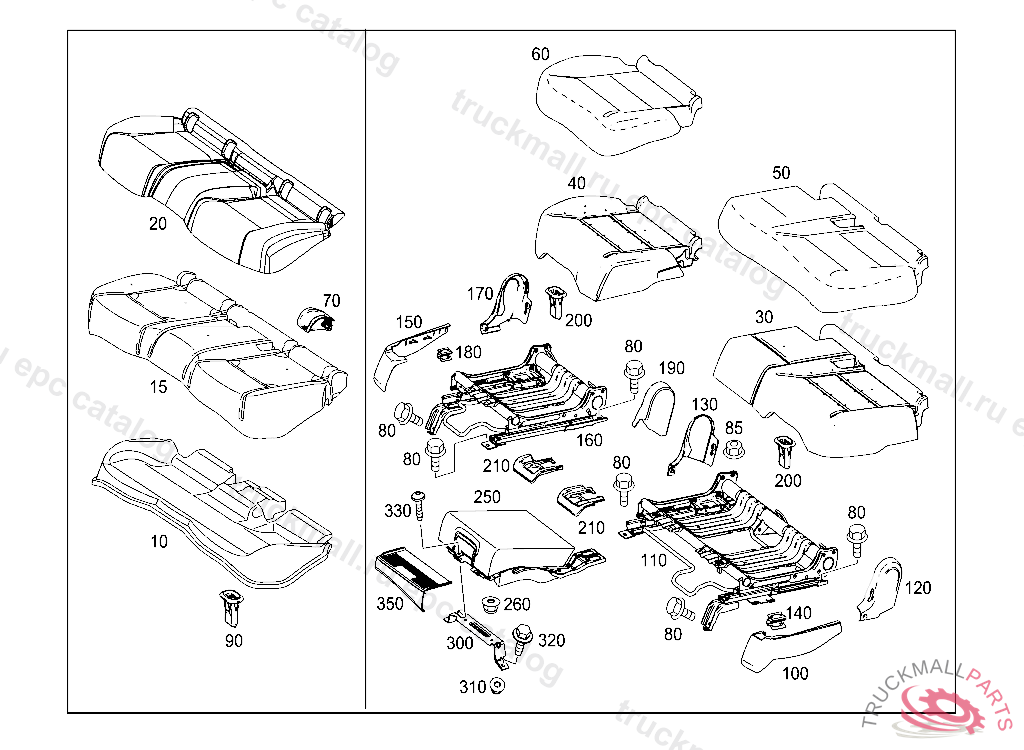

Поз.
Артикул
Описание
10
PAD REAR SEAT CUSHION RIGID FOAM INSERT
15
PAD REAR SEAT CUSHION
15
PAD REAR SEAT CUSHION
15
PAD REAR SEAT CUSHION
20
COVER REAR SEAT CUSHION , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 20121024 N 20121108 9H38 001A QFT246A2010 BLACK, Replaced By: A2469203701
20
COVER REAR SEAT CUSHION , Replaced By: A2469203801
20
COVER REAR SEAT CUSHION , Replaced By: A2469203901
20
COVER REAR SEAT CUSHION , Replaced By: A2469204001
20
COVER REAR SEAT CUSHION , Replaced By: A2469204101
20
COVER REAR SEAT CUSHION , Replaced By: A2469204201
20
COVER REAR SEAT CUSHION
20
COVER REAR SEAT CUSHION
20
COVER REAR SEAT CUSHION , 9H38 001A QFT246A2010 BLACK
20
COVER REAR SEAT CUSHION
20
COVER REAR SEAT CUSHION
20
COVER REAR SEAT CUSHION
30
PAD REAR SEAT CUSHION LEFT
40
PAD REAR SEAT CUSHION RIGHT
50
COVER REAR SEAT CUSHION LEFT
50
COVER REAR SEAT CUSHION LEFT
50
COVER REAR SEAT CUSHION LEFT
50
COVER REAR SEAT CUSHION LEFT
60
COVER REAR SEAT CUSHION RIGHT
60
COVER REAR SEAT CUSHION RIGHT
60
COVER REAR SEAT CUSHION RIGHT
60
COVER REAR SEAT CUSHION RIGHT
70
COVER ISOFIX
70
COVER
80
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
80
BOLT W FLANGE FASTENING SEAT FRAME AT RIGHT, FRONT M8X25
85
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
90
BRACKET
100
SEAT RAIL COVER SEAT ADJUSTMENT, 9H68QFT246A2350 LAVA BLACK
110
SEAT ADJUSTMENT REAR SEAT BENCH,LEFT
120
COVER REAR DOOR
130
COVER TUNNEL,IN THE REAR
140
RETAINING CLIP BRACKET MOUNTING
150
SEAT RAIL COVER SEAT ADJUSTMENT, 9H68QFT246A2350 LAVA BLACK
160
SEAT ADJUSTMENT REAR SEAT BENCH,RIGHT
170
COVER TUNNEL,IN THE REAR
180
RETAINING CLIP BRACKET MOUNTING
190
COVER REAR DOOR
200
BRACKET
210
COVER TO SEAT FRAME AT LEFT, FRONT INSIDE, 9H68QFT246A2350 LAVA BLACK
210
COVER TO SEAT FRAME AT RIGHT, FRONT INSIDE, 9H68QFT246A2350 LAVA BLACK
250
CHILD SEAT LEFT
250
CHILD SEAT RIGHT
260
NUT RELAY TO BRACKET M5
300
FRAME SEGMENT FASTENING, CHILD SEAT AT RIGHT TO ASSEMBLY FRAME
300
FRAME SEGMENT FASTENING, CHILD SEAT AT LEFT TO ASSEMBLY FRAME
310
HEX. BLIND CLINCH NUT FASTENING BRACKET RIGHT
320
BOLT W FLANGE FASTENING SEAT FRAME AT RIGHT, FRONT M8X25
320
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
330
HEXALOBULAR BOLT BUMPER COVERING M6X20
350
FOOTREST CHILD'S SEAT, RIGHT, 9051QFT246A2300 BLACK
350
FOOTREST CHILD'S SEAT, LEFT, 9051QFT246A2300 BLACK
